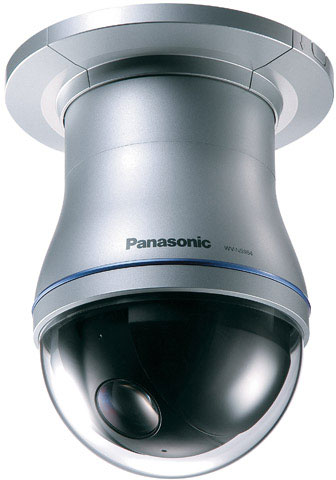

Panasonic WV-NS954 Security Camera

Part Number: WV-NS954
Model: WV-NS954
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CCD
Minimum Illumination
0 lux
Color Supported
ColorMonochrome
Tilt
185° to 5°

Product Description:

  Panasonic WV-NS954 Network Camera - Dome - 640 x 480 - 30x Optical - CCD
Explore all Panasonic WV-NS954 Security Cameras
Add to Quote
Panasonic WV-NS954 Security Camera
Panasonic WV-NS954 Security Camera
Panasonic WV-NS954 Security Camera Panasonic WV-NS954 Security Camera
Full specifications (PDF)

Panasonic WV-NS954 Security Camera Model Overview

The Panasonic WV-NS954 is the latest addition the the Panasonic line of I-Pro network cameras. Super Dynamic III technology delivers 128x wider dynamic range compared to conventional cameras. High sensitivity with Day-Night function: 0.5 lux (Color) at F1.4 (WIDE), 0.04 lux (B/W) at F1.4(WIDE). IR cut filter switches on and off to ensure optimal picture quality in both color and B/W.
Panasonic WV-NS954 Security Camera Overview

Super Dynamic III technology delivers 128x wider dynamic range compared to conventional cameras. Adaptive Digital Noise Reduction: 2D-DNR and 3D-DNR integration ensures reduced noise and motion blur in various conditions.

Full specifications (PDF)
Display & Graphics
Image Sensor Type:
CCD
Minimum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Tilt:
185° to 5°
Swivel:
180° to 180°
Video
Maximum Video Resolution:
640 x 480
Lens
Lens Type:
Zoom
Minimum Focal Length:
3.80 mm
Maximum Focal Length:
114 mm
Optical Zoom:
30x
Digital Zoom:
10x
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Protocols:
  • TCP/IP
  • UDP
  • HTTP
  • FTP
  • SMTP
  • DHCP
  • DNS
  • DDNS
  • NTP
  • SNMP
  • RTP
Power Description
Input Voltage:
24 V AC
Physical Characteristics
Form Factor:
Dome
Height:
9.2"
Diameter:
6.1"
Weight (Approximate):
4.85 lb
Miscellaneous
Additional Information:
  • 5 degrees upper view for various applications
  • Auto tracking: The camera automatically pans and tilts to follow a moving subject and keep it in the center of the image
  • Scene Change Detection alarms when lens is covered, spray painted, removed or de-focused
System Requirements:

Supported Operating System:

  • Microsoft Windows XP Professional/Home SP2, Windows Vista

Supported Browser:

  • Microsoft Internet Explorer 7.0, Internet Explorer 6.0 SP2, Internet Explorer 6.0 SP1 (Only with Windows 2000 Professional SP4)
Compatibility:

NTSC

Security Features:
  • User authentication (ID 32 digit, PW 32 digit)
  • Host authentication (IP address)
Item Numbers
GTIN: 0791871505649
UPC: 791871505649
EAN: 0791871505649
UNSPSC: 46171610
