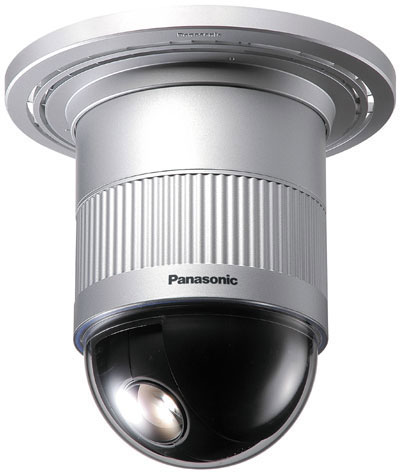

Panasonic WV-CS574 Security Camera

Part Number: WV-CS574
Model: WV-CS574

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CCD
Minimum Illumination
1 lux
Color Supported
Color
Tilt
185° to 5°

Product Description:

  Panasonic WV-CS574 PTZ Dome Camera - Color - CCD - Cable

Panasonic WV-CS574 Security Camera Model Overview

Combining high performance and versatile features, the WV-CS574 provides reliable color surveillance in a broad range of applications. It power packs into its sleek chassis a color CCD camera, 22x zoom lens and a pan/tilt rotating mechanism. The unit features full 360 degree horizontal rotations, 180 degree vertical pan, and 300 degree/second speed. It also provides Privacy Zone Masking and Patrol Learn features, Digital Motion Detection and an Image Hold function to minimize image distortion during panning. The WV-CS574 delivers 510 lines of horizontal resolution and provides detailed color images even in low light (1 lux).
Panasonic WV-CS574 Security Camera Overview

Panasonic introduces the WV-CS574 color dome camera. A compact 110mm (4.3"), all-in-one unit contains both a 22x optical zoom lens and a pan/tilt rotating chassis. 510 lines of horizontal resolution (at High Position) deliver color images of outstanding quality. Ultra sensitive, this camera also operates in light as low as 1 lux. Superb basic features capture subjects with definitive clarity.

Display & Graphics
Image Sensor Type:
CCD
Minimum Illumination:
1 lux
Color Supported:
Color
Tilt:
185° to 5°
Swivel:
360° to 360°
Lens
Lens Type:
Zoom
Minimum Focal Length:
3.79 mm
Maximum Focal Length:
83.40 mm
Optical Zoom:
22x
Digital Zoom:
10x
Network & Communication
Connectivity Technology:
Wired
Wireless Technology:
No
Power Description
Input Voltage:
24 V AC
Physical Characteristics
Form Factor:
Dome
Height:
7.5"
Diameter:
4.7"
Weight (Approximate):
4.41 lb
Miscellaneous
Additional Information:
  • Privacy zone masking function
  • Linear 32x electronic sensitivity enhancement function
  • Digital motion detector
  • Patrol Learn function
  • Auto panning function with 32 preset positions
Compatibility:
NTSC
Item Numbers
GTIN: 0791871504574
UPC: 791871504574
EAN: 0791871504574
UNSPSC: 46171610
