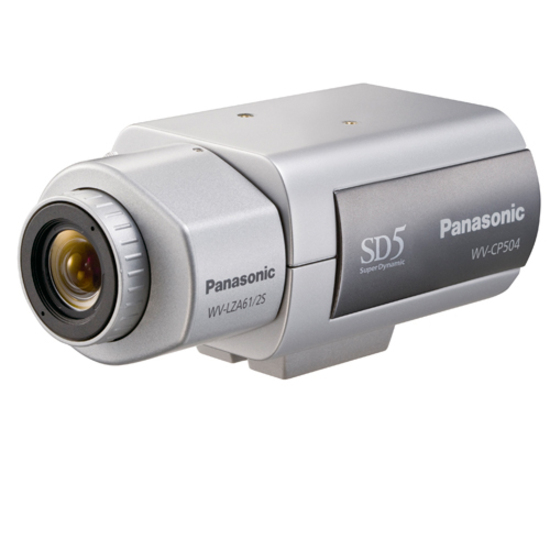

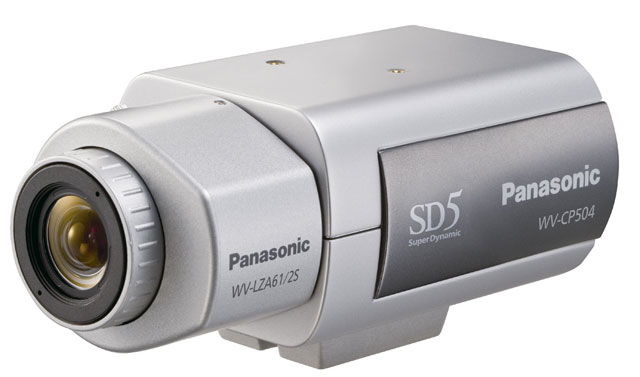

Panasonic WV-CP504 Security Camera

The Panasonic WV-CP504 Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Panasonic WV-CP500 - Camera (Fixed Day-Night with SD5 Technology; 24VAC or 12VDC)
  • Low cost and affordable solution for surveillance applications
  • Features CCD image sensor
Read More
Discontinued Need Assistance?
Add to Quote
Panasonic WV-CP500 Security Camera Model Overview
Panasonic introduces the next benchmark in camera performance with the launch of Super Dynamic 5 (SD5) image technology. SD5 achieves exceptional image quality by combining 128x wider dynamic range with greater low-light sensitivity (0.1 lux), more resolution (650 lines color), and the implementation of Adaptive Black Stretch (ABS) technology to compensate for dark areas. The fixed box cameras also include intelligent Video Motion Detection (i-VMD) to capture moving objects without distortion and object detection for items removed or left behind.
Panasonic WV-CP504 Security Camera Overview

Panasonic introduces the next benchmark in camera performance with the launch of Super Dynamic 5 (SD5) image technology. SD5 achieves exceptional image quality by combining 128x wider dynamic range with greater low-light sensitivity (0.1 lux), more resolution (650 lines color), and the implementation of Adaptive Black Stretch (ABS) technology to compensate for dark areas. The fixed box cameras also include intelligent Video Motion Detection (i-VMD) to capture moving objects without distortion and object detection for items removed or left behind.

Display & Graphics
Image Sensor Type:
CCD
Minimum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Video
Horizontal Resolution:
700 TVL
Video Signal Format:
NTSC
Lens
Digital Zoom:
2x
Network & Communication
Connectivity Technology:
Wired
Power Description
Input Voltage:
  • 24 V AC
  • 12 V DC
Physical Characteristics
Color:
Silver
Height:
2.6"
Width:
2.8"
Depth:
4.1"
Weight (Approximate):
12.32 oz
Environmental Conditions
Minimum Operating Temperature:
14°F (-10°C)
Maximum Operating Temperature:
122°F (50°C)
Miscellaneous
Features:
  • Motion Detection
  • Day/Night
  • 2D Digital Noise Reduction (2DNR)
  • 3D Digital Noise Reduction
  • Back Light Compensation (BLC)
  • Auto Image Stabilizer
  • Tamper Detection
Indoor/Outdoor:
Indoor
Package Contents:
  • WV-CP504 Day/Night Surveillance Camera
  • CD-ROM (Including Operating Instructions)
  • Installation Guide
  • Power Cord Plug
Additional Information:
  • Auto Image Stabilizer for applications where vibration or wind is a concern
  • Internal / Line-lock / Multiplexed Vertical Drive (VD2) synchronization
  • Over the coaxial cable data communication
  • 16 alphanumerics camera title display
  • Multi language: English, French, Italian, Spanish, German, Russian, Japanese
Item Numbers
GTIN: 0791871506097
UPC: 791871506097
EAN: 0791871506097
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Panasonic WV-CP504 Security Camera is also known as PAN-WVCP504
