Panasonic WV-CF284 Security Camera

Part Number: WV-CF284
Model: WV-CF284

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CCD
Minimum Illumination
0.9 lux
Color Supported
ColorMonochrome
Tilt
75° to 75°

Product Description:

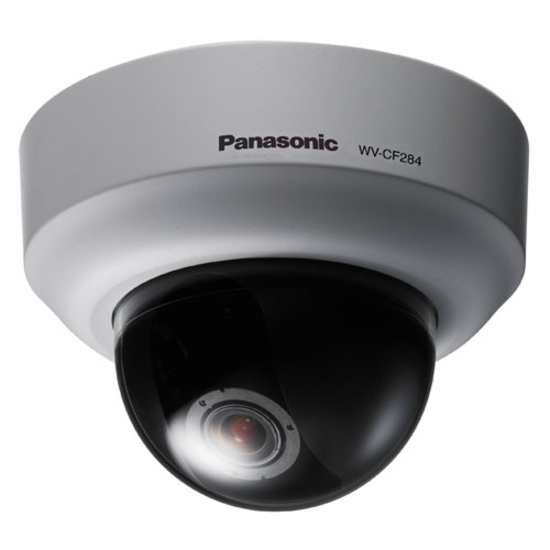

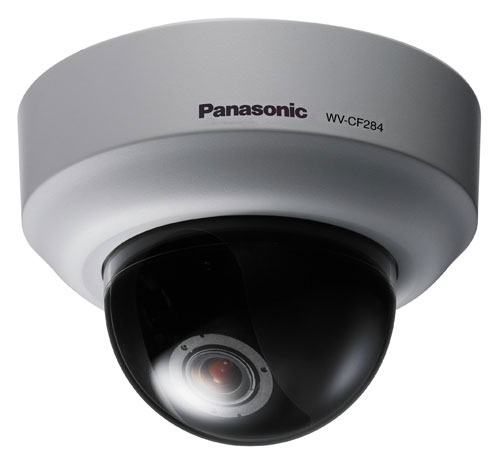

  Panasonic WV-CF284 Surveillance Camera - Mini Dome - 2x Optical - CCD

Panasonic WV-CF284 Security Camera Model Overview

The WV-CF284 Series of compact dome cameras from Panasonic are equipped with a recently-developed high performance DSP that provides better image quality. Adaptive Black Stretch technology transforms dark areas into crisp images like those seen by the human eye. The WV-CF284 Series also provides easier installation including further accuracy and simple focus adjustment through a newly-developed Auto Back Focus mechanism. The WV-CF284 Series can be used at a variety of sites including offices, retail stores, restaurants and shopping malls.
Panasonic WV-CF284 Security Camera Overview

The WV-CF284 compact dome camera from Panasonic is equipped with a newly-developed high performance DSP that provides better image quality. Adaptive Black Stretch technology transforms dark areas into crisp images like those seen by the human eye. The WV-CF284 also offers easy installation with its three-way hinge that allows horizontal, vertical and swivel rotation; and a monitor output terminal for on-site adjustments. The WV-CF284 can be used at a variety of sites including offices, retail stores, restaurants and shopping malls.

Display & Graphics
Image Sensor Type:
CCD
Minimum Illumination:
0.9 lux
Color Supported:
  • Color
  • Monochrome
Tilt:
75° to 75°
Swivel:
140° to 180°
Lens
Lens Type:
Zoom
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
6 mm
Optical Zoom:
2x
Network & Communication
Connectivity Technology:
Wired
Power Description
Input Voltage:
  • 24 V AC
  • 12 V DC
Physical Characteristics
Form Factor:
Mini Dome
Height:
3.6"
Diameter:
5.1"
Weight (Approximate):
1 lb
Miscellaneous
Additional Information:
  • Adaptive Black Stretch
  • Ease of installation with versatile three-way hinge
  • Simple Day/Night Feature (Chrominance signal is removed to achieve B/W image (no IR filter shifting))
Compatibility:

NTSC

Item Numbers
GTIN: 0791871505144
UPC: 791871505144
EAN: 0791871505144
UNSPSC: 46171610
