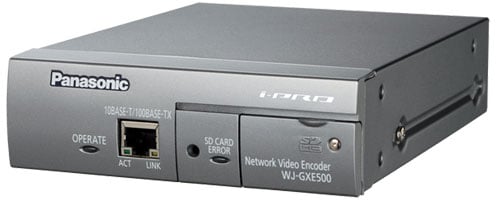

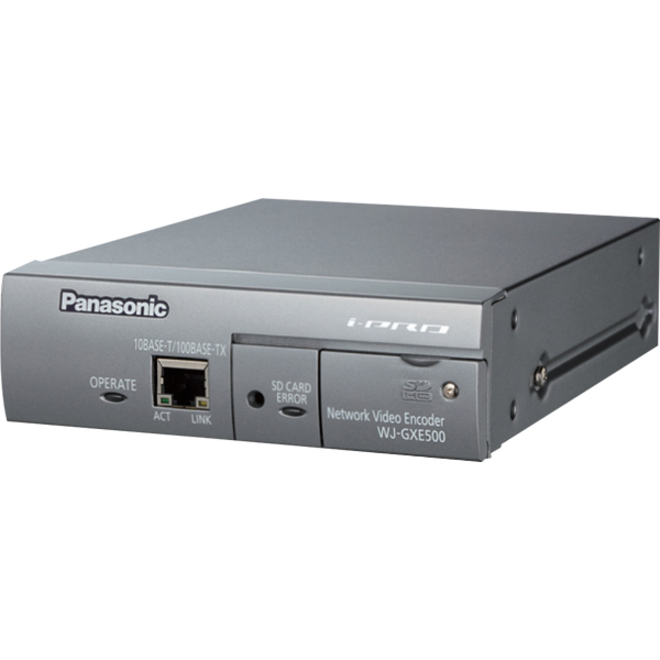

Panasonic WJ-GXE500 Network Video Server Model Overview
The Panasonic WJ-GXE500 4CH H.264 Video Encoder is a high-performance network video solution designed for efficient video processing and streaming. This compact device supports full-frame H.264 transmission across four channels, ensuring crystal-clear video quality even with fast-moving subjects. Built with advanced features including face detection and dual streams in H.264 and JPEG formats, this encoder is an ideal choice for professional surveillance applications. Its PoE capability and compatibility with various PTZ camera models make installation straightforward and versatile, while the SD card slot allows for convenient manual and alarm recording.
Key Features
Full frame H.264 transmission for each of the four channels
Motion adaptive interlace/progressive conversion for clear moving images
Face detection technology for tracking human faces
PoE support simplifies power supply via LAN connections
Alarm inputs for enhanced security monitoring
Multi-language GUI for easy operation and setup
Specifications
TV System: NTSC / PAL
Audio/Video Input: 4x 1.0 V (p-p) composite video inputs
Video Resolution (D1 mode): 720 x 480 (NTSC) / 720 x 576 (PAL)
Network Interface: 10Base-T/100Base-TX (RJ-45)
Dimensions: 140 mm (W) x 44 mm (H) x 185 mm (D)
Operating Temperature: -10 °C to +50 °C
Power Consumption: 500 mA (12 V DC) / 6 W (PoE)
Weight: 1.0 kg (approx.)
Panasonic WJGXE500 Network/IP Video Surveillance Equipment Overview
The WJ-GXE500 Network Video Encoder is part of the Panasonic i-PRO SmartHD lineup. It is a Power over Ethernet (PoE) IEEE802.3af, 4-channel encoder that uses less than half the power consumption of equivalent models. The WJ-GXE500 also uses the Panasonic proprietary UniPhier System LSI that is compliant with the H.264 High Profile standard format and makes it possible to stream video over the network at a lower data size.
The Panasonic WJGXE500 Network/IP Video Surveillance Equipment is also known as
PAN-WJGXE500
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Panasonic WJGXE500 Network/IP Video Surveillance Equipment
Full specifications (PDF)
