Full specifications (PDF)
System Components:
Digital Video Recorder
Panasonic WJ-ND300A/500V Network Video Recorder
Part Number:
WJ-ND300A/500V
Model:
WJ-ND300A

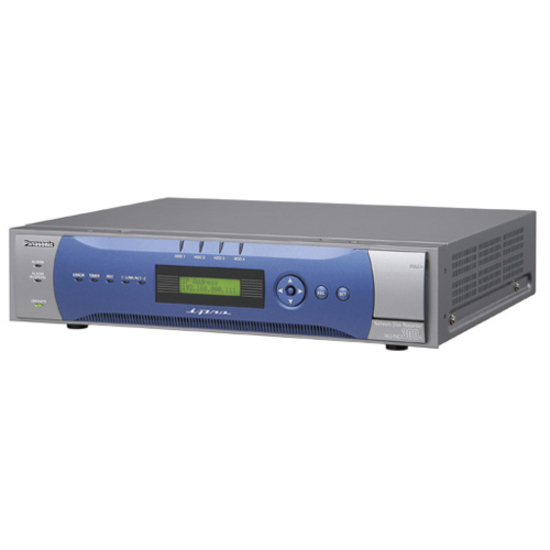

Panasonic WJ-ND300A Network Video Recorder Model Overview
The Panasonic WJ-ND300A is a Network Disk Recorder with Expandable Capacity for Digital Image Data. It also includes various recording modes: Manual, Schedule, Event (Pre/Post), Emergency, External Timer.
Panasonic WJ-ND300A/500V Network Video Recorder Overview
WJ-ND300A Network Disk Recorder with expandable capacity for digital image data from up to 32 Network Cameras. It has Various alarm sources such as 16x Terminal inputs, 16x Camera alarms, Panasonic Alarm Protocol, and flexible alarm actions such as Alarm recording, E-mail notification, Alarm message, Camera positioning, FTP image transfer, Terminal output, Panasonic alarm protocol output, Buzzer and LED.
Technical Information
Storage
Hard Drive Capacity:
500 GB
Video
Video Formats:
- MPEG-4
- Motion JPEG
Video Signal Format:
NTSC
Maximum Resolution:
1280 x 960
Maximum Frame Rate:
30 fps
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Network (RJ-45):
Yes
Alarm Connector:
Yes
Serial:
Yes
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Height:
3.5"
Width:
16.5"
Depth:
13.8"
Weight (Approximate):
18.30 lb
Miscellaneous
Package Contents:
- WJ-ND300A Network Digital Video Recorder
- 2 x Rack Mount Bracket
- 4 x Rack Mount Bracket Fixing Screw
- 12 x Hard Disk Drive Fixing Screw
- Installation Guide
- Power Cord
- CD-ROM
Additional Information:
- Various Recording Mode: Manual, Schedule, Event (Pre/Post), Emergency, External Timer
- Flexible Playback Controls
- Various Display Mode: Spot, Quad (8 patterns), Spot Sequence, Quad Sequence
- Recorded images can be downloaded to a PC
- Quick IP Setup for Panasonic i-Pro series network cameras
- Up to 8 clients can monitor images and control WJ-ND300A simultaneously
- Performance measurement function for appropriate recording frame rate setup
Item Numbers
UNSPSC:
46171621
Get help from a Barcoding Expert!
The Panasonic WJ-ND300A/500V Network Video Recorder is also known as
PAN-WJND300A500V
