Panasonic BB-HGW700A Accessory

Part Number: BB-HGW700A
Model: BB-HGW700A

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11b/g
ISM Band
Yes
ISM Maximum Frequency
2.40 GHz
Total Number of Antennas
1

Product Description:

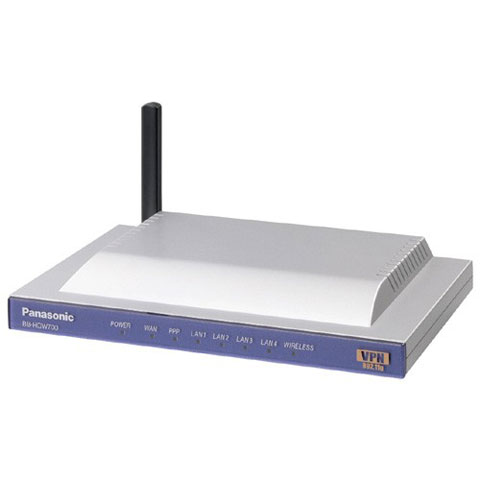

  Panasonic - BB-HGW700A Network Camera Management System with Router - 4 x LAN, 1 x WAN

Panasonic BB-HGW700A Network Video Server Model Overview

Network setup is simple, as the Panasonic BB-HGW700A camera management system automatically configures up to 16 Panasonic network cameras (IP address, port number, etc.), enables Internet access, creates a custom portal page and enables multi-level security control. A customized, flexible network for your computing environment is made possible by 802.11b/g wireless communication as well as four switched Ethernet connections. The system automatically configures the network connection for up to 128 computers or devices, and additional devices can be manually added.
Panasonic BB-HGW700A Accessory Overview

Network setup is simple, as the camera management system automatically configures up to 16 Panasonic network cameras (IP address, port number, etc.), enables Internet access, creates a custom portal page and enables multi-level security control. A customized, flexible network for your computing environment is made possible by 802.11b/g wireless communication as well as four switched Ethernet connections. The system automatically configures the network connection for up to 128 computers or devices, and additional devices can be manually added.

The camera management system's built-in firewall helps protect every network computer from hackers. Use the system with a Virtual Private Network (VPN) server to access a corporate or secure network. You can also customize the firewall to best suit the needs of your home or small business.

The BB-HGW700A automatically adds the image from up to 16 cameras on a single web page which can be used from a local network or even the Internet. For easy access, just click a camera image on the camera portal page and that camera's individual screen will open allowing you to view and control that camera easily.

Wireless Specifications
Wireless LAN Standard:
IEEE 802.11b/g
ISM Band:
Yes
ISM Maximum Frequency:
2.40 GHz
Total Number of Antennas:
1
Antenna Type:
Internal
Total Wireless Transmission Speed:
6.75 MB/s
Wireless Security:
  • SSID
  • Stealth SSID
  • 64/128/152 bit WEP encryption
  • IP & MAC address filtering
Interfaces/Ports
Number of Network (RJ-45) Ports:
4
Management Port:
Yes
Number of Broadband (RJ-45) Ports:
1
Management & Protocols
Management:

HTTP

Security Features:
  • Administrator password protection
  • Stateful packet inspection
  • NAT
  • PPTP Pass-Thru for VPN
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1.9"
Width:
8.8"
Depth:
10.9"
Weight (Approximate):
1.87 lb
Miscellaneous
Additional Information:
  • Wireless Roaming
  • Platform: PC
Certifications & Standards:
  • IEEE 802.11b
  • IEEE 802.11g
Item Numbers
GTIN: 0037988809813
UPC: 037988809813
EAN: 0037988809813
UNSPSC: 43222609
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Panasonic BB-HGW700A Accessory is also known as PCE-BBHGW700A
