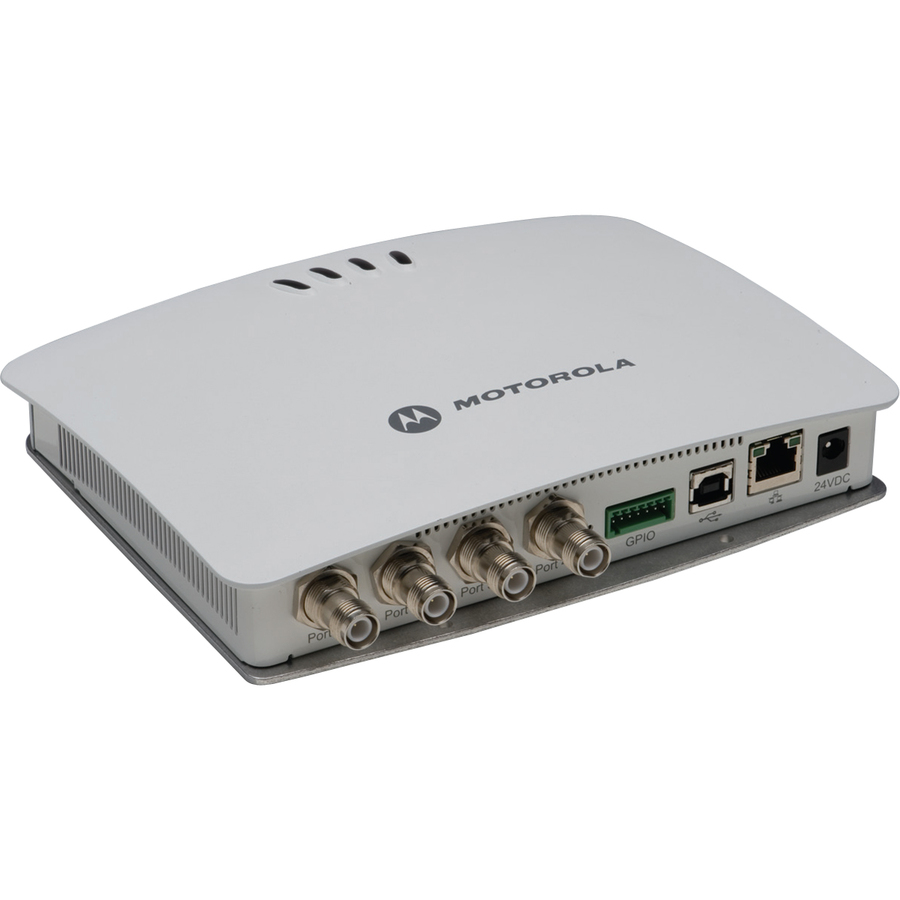

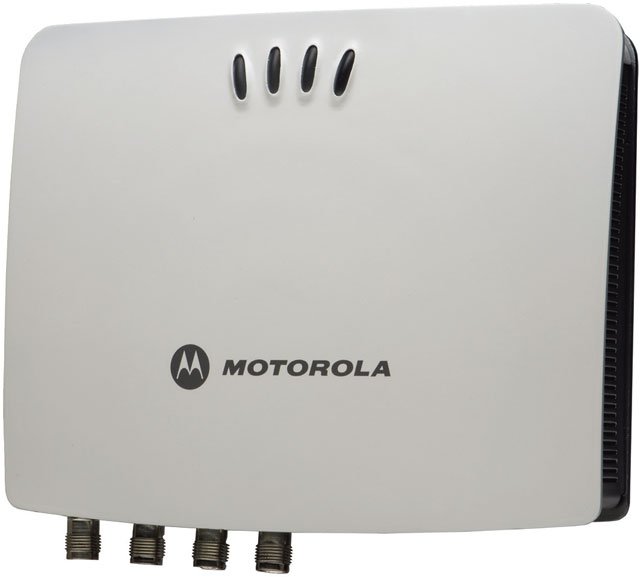

Motorola FX7400-22310A30-US RFID Reader

Part Number: FX7400-22310A30-US
Model: FX7400

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Minimum Frequency
902 MHz
Maximum Frequency
928 MHz
Material
Cast AluminumMetalPlastic
Height
7.7"

Product Description:

  2-port RFID reader, Gen 2, Power over Ethernet, fixed US frequency band, Windows CE 5.0 OS. Cables and antenna sold separately. See accessories.

Motorola FX7400 RFID Reader Model Overview

Easy to deploy, use, and manage, Motorola's high performance FX7400 series of fixed RFID readers is ideally suited for global enterprise deployments in space-constrained, customer-facing environments. It boasts a compact design married with a set of highly integrated, enterprise features including: auto-discovery and application-specific set-up for ease of installation; power over Ethernet (POE) to eliminate the need for costly power drops; and advanced features for secure data transmission. This unique combination makes the FX7400 series of RFID readers particularly well-suited for retail inventory and enterprise asset management applications in any environment where performance and a small footprint are important.
Motorola FX7400-22310A30-US RFID Reader Overview

Easy to deploy, use, and manage, Motorola's high performance FX7400 series of fixed RFID readers is ideally suited for global enterprise deployments in space-constrained, customer-facing environments. It boasts a compact design married with a set of highly integrated, enterprise features including: auto-discovery and application-specific set-up for ease of installation; power over Ethernet (POE) to eliminate the need for costly power drops; and advanced features for secure data transmission. This unique combination makes the FX7400 series of RFID readers particularly well-suited for retail inventory and enterprise asset management applications in any environment where performance and a small footprint are important.

Technical Information
Minimum Frequency:
902 MHz
Maximum Frequency:
928 MHz
Physical Characteristics
Material:
  • Cast Aluminum
  • Metal
  • Plastic
Height:
7.7"
Width:
5.9"
Depth:
1.7"
Weight (Approximate):
1.80 lb
Miscellaneous
Additional Information:
  • Humidity: 5-85% non-condensing
  • Operating Temperature: -4° to +131° F/-20° to +55° C
  • Frequency: 902 MHz to 928 MHz, 865 MHz to 868 MHz
  • Power Output: +15dBm to +30dBm
  • Power Supply: +24Vdc or POE (IEEE 802.3af)
  • Firmware Upgrade: Web-based and remote firmware upgrade capabilities
  • IP Addressing: Static and Dynamic
  • Memory: Flash 64 MB; DraM 64 MB
  • Operating System: Microsoft Windows CE 5.0
  • Communications: 10/100 BaseT Ethernet (rJ45) w/ PoE support; USB Client (USB type B)
  • General Purpose I/o: 2 inputs, 2 outputs, optically isolated
  • Antenna Ports: 2 mono-static ports (reverse Polarity tNC)
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211710
