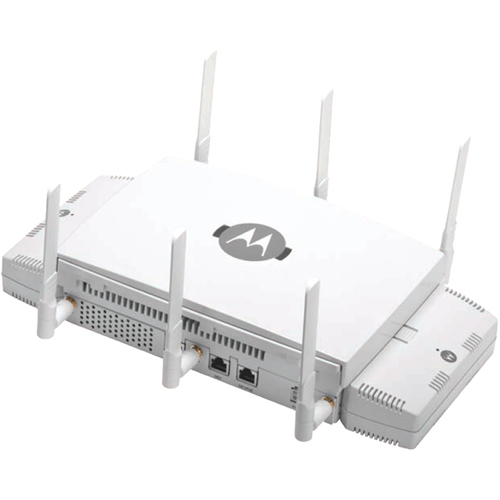

Motorola AP-8132-66040-US Access Point

The Motorola AP-8132-66040-US Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Motorola AP 8132 - Dual Radio 3X3:3 Access Access Point 802.11. MOTOROLA AP-8132 DUAL RADIO ACCESS POINT 3X3:3 REQUIRES ANTENNA AND POWER SUPPLY AP-8132

When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
Ensure speedy data transfer of up to 450 Mbit/s with the IEEE 802.11n wireless technology
Featuring Fast Ethernet port to speed up the transfer rate up to 100Mb/sec to connect your wired network
Its management capability provides efficient control over setup and configuration of your network

Need a different version? See all Motorola AP 8132 Access Points

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Motorola AP 8132 Access Point Model Overview

The Motorola AP 8132 is the industry's first modular access point. Its innovative design lets you simply snap on modules to extend functionality beyond that of traditional access points. Now you can leverage the AP 8132 to easily deploy hardware-based applications, which can significantly reduce your deployment and installation costs. With its standard USB interface, the AP 8132 provides virtually unlimited possibilities for supporting a broad range of applications from a wide variety of developers.

Motorola AP-8132-66040-US Access Point Overview

INNOVATIVE MODULAR DESIGN LETS YOU EASILY DEPLOY APPLICATIONS WHERE THEY HAVE THE GREATEST IMPACT

It's all about applications. Applications that keep you connected with your customers. That support and empower your mobile employees. That help you maximize operational efficiency and reduce costs. Whatever industry you're in - retail, hospitality, healthcare or any other - today you depend more and more on applications that are accessed on mobile devices, such as mobile computers, smartphones and tablets, using today's powerful 802.11n Wi-Fi networks.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.41 GHz

ISM Maximum Frequency:

2.47 GHz

UNII Minimum Frequency:

5.18 GHz

UNII Maximum Frequency:

5.83 GHz

Antenna Connector:

RP-SMA Connector

Wireless Transmission Speed:

450 Mbit/s

Wireless Security:

IEEE 802.1x
IEEE 802.11i
WPA
WPA2
PPPoE

Features:

Quality of Service (QoS)
MIMO Technology

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet
Gigabit Ethernet

Number of Network (RJ-45) Ports:

Network (RJ-11):

PoE (RJ-45) Port:

PoE PD Port:

Yes

VGA:

HDMI:

USB:

Yes

Powerline:

Management Port:

Yes

Management & Protocols

Management:

DHCP

Power Description

Input Voltage:

48 V DC

Physical Characteristics

Form Factor:

Ceiling Mountable
Wall Mountable

Height:

1.6"

Width:

Depth:

Weight (Approximate):

3.20 lb

Miscellaneous

Certifications & Standards:

IEEE Standards:

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.1x
IEEE 802.11i
IEEE 802.1p

Product Safety Certification:

UL / cUL 60950-1
IEC / EN60950-1
UL2043

Radio Approvals:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Item Numbers

GTIN: 0088796597294, 0641676217288, 0682017465593, 0783555014219, 4943793107135

UPC: 088796597294, 641676217288, 682017465593, 783555014219

EAN: 0088796597294, 0641676217288, 0682017465593, 0783555014219, 4943793107135

UNSPSC: 43222631
