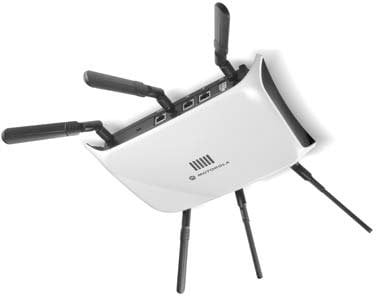

Motorola AP-7131N-66E40-US Access Point

The Motorola AP-7131N-66E40-US Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Motorola AP-7131 - Wireless Access Point/Bridge
  • Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
  • Ensure speedy data transfer of up to 600 Mbit/s with the IEEE 802.11n wireless technology
  • Up to 10x faster than standard Ethernet connectivity for your wired network
  • Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
Read More
Discontinued Need Assistance?
Add to Quote
Motorola AP 7131 Access Point Model Overview
The Motorola AP 7131 802.11a/b/g/n access point delivers the throughput, coverage and resiliency required to build an all wireless enterprise. The tri-radio modular design provides support for high-speed wireless voice and data services, mesh networking and non-data applications such as IPS. The fully DFS compliant 802.11n Draft 2.0 AP 7131 offers speeds up to 600 Mbps per Access Point. six times the bandwidth of an 802.11a/g Access Point. The Adaptive AP architecture allows the device to offer two modes of operation, without any firmware change either as a stand-alone access point or as a wireless switch adopted access point for centralized management.
Motorola AP-7131N-66E40-US Access Point Overview

The AP-7131 is the industry's first 802.11a/b/g/n Adaptive Services Wireless Access Point that delivers the performance, coverage, reliability and security required to enable the truly wireless enterprise. The band-unlocked tri-radio expandable design provides simultaneous support for three major networking functions: high-speed wireless data, voice and video services for client access, selfhealing mesh networking and Wireless Intrusion Prevention System (IPS) sensor functionality for around the clock protection of the network.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.46 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Total Number of Antennas:
6
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
600 Mbit/s
Wireless Security:
  • WPA2
  • WPA
  • IEEE 802.11i
  • IEEE 802.1x
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
PoE (RJ-45) Port:
Yes
Management Port:
Yes
Management & Protocols
Management:
  • SNMP v3
  • CLI
  • Web-based GUI
  • DHCP
  • IEEE 802.1p QoS
  • IEEE 802.1q VLAN
Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.5"
Depth:
5.5"
Weight (Approximate):
2.67 lb
Miscellaneous
Package Contents:
  • AP-7131 Adaptive Services Wireless Access Point
  • Quick Installation Guide
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0080479988641, 0799471567425
UPC: 080479988641, 799471567425
EAN: 0080479988641, 0799471567425
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-7131N-66E40-US Access Point is also known as SYM-AP7131N66E40US or AP-7131N-66E40-US.
