Motorola AP-7131-60020-WR Access Point

Motorola AP-6521-60010-EU Access Point A newer version of this item is available.
It is replaced by the Motorola AP-6521-60010-EU Access Point.
Motorola AP-7131 - AP-7131 Single Radio 802.11n Access Point
  • When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
  • Ensure speedy data transfer of up to 300 Mbit/s with the IEEE 802.11n wireless technology
  • Up to 10x faster than standard Ethernet connectivity for your wired network
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

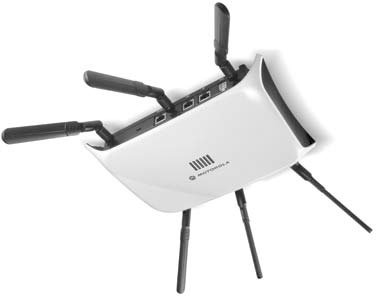

Motorola AP 7131 Access Point Model Overview
The Motorola AP 7131 802.11a/b/g/n access point delivers the throughput, coverage and resiliency required to build an all wireless enterprise. The tri-radio modular design provides support for high-speed wireless voice and data services, mesh networking and non-data applications such as IPS. The fully DFS compliant 802.11n Draft 2.0 AP 7131 offers speeds up to 600 Mbps per Access Point. six times the bandwidth of an 802.11a/g Access Point. The Adaptive AP architecture allows the device to offer two modes of operation, without any firmware change either as a stand-alone access point or as a wireless switch adopted access point for centralized management.
Motorola AP-7131-60020-WR Access Point Overview

The 802.11a/b/g/n AP-7131 Access Point delivers the throughput, coverage and resiliency required to enable a wireless enterprise. The tri-radio expandable design provides simultaneous support for three major networking functions: high-speed wireless voice and data services for client access, self-healing mesh networking and non-data applications including Wireless IPS sensor functionality for around the clock protection of the wireless and wired network.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.73 GHz
Total Number of Antennas:
6
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
300 Mbit/s
Wireless Security:
  • WPA
  • WPA2
  • 3 DES IPSec encryption
  • ACLS
  • TLS
  • TTLS
  • PEAP
  • AAA
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE (RJ-45) Port:
Yes
Management & Protocols
Management:

DHCP server

Power Description
Input Voltage:
48 V DC
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1.1"
Depth:
5.5"
Weight (Approximate):
2.22 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN: 0012303103715, 0799471567388
UPC: 012303103715, 799471567388
EAN: 0012303103715, 0799471567388
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Motorola AP-7131-60020-WR Access Point is also known as SYM-AP713160020WR or AP-7131-60020-WR.
