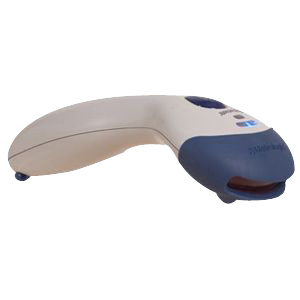

Metrologic MS9535-5 Barcode Scanner

A newer version of this item is available.
It is replaced by the Honeywell 1202G-1 Barcode Scanner.

Metrologic MS9535 Voyager BT - SCANNER ONLY, 1D Laser, Cordless. Cables and accessories must be purchased separately. These include USB (Part# 52-52828A-3-RW), PS/2 (Part# 53-530002B), or RS-232 Serial cables (Part# 53-53000B-N-3), Power supply (Part# 46-46880) and a Charging/Communications cradle (Part# MI9535-538). Color: White.

Connectivity

Cordless

Scanner Capability

Scanner Type

Laser

Increases productivity by giving the opportunity to wander, without the tangle of cables
Laser scan engine guarantees rapid error free data entry
With Bluetooth technology, you can scan barcodes and then transmit data from the base

Need a different version? See all Metrologic MS9535 Voyager BT Barcode Scanners

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

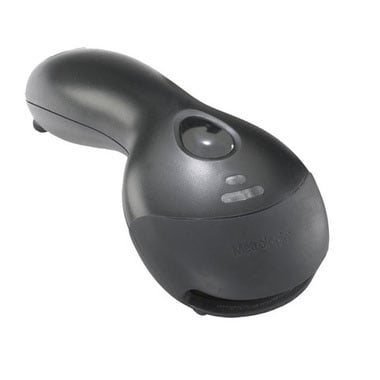

Metrologic MS9535 Voyager BT Barcode Scanner Model Overview

The MS9535 Voyager BT is a wireless handheld scanner and is among the first of its kind to employ the emerging Bluetooth wireless technology standard. Designed for use in POS or light warehousing applications, VoyagerBT can communicate with its own base station or with other already-equipped Bluetooth devices such as PC's, laptops and barcode printers.

Metrologic MS9535-5 Barcode Scanner Overview

VoyagerBT MS9535 combines the freedom of Bluetooth wireless technology with many of the outstanding features found in all Voyager series scanners. In addition to automatic infrared activation for bar code detection, VoyagerBT comes equipped with patented RangeGate technology which allows the device to scan hundreds of bar codes when out of range of a host system.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Scanning Capability:

Barcode Symbology Supported:

Code 39
Code 93
Code 128
UPC/EAN/JAN
Code 2 of 5
Code 11
Codabar
MSI Plessey
GS1 DataBar
Telepen
Trioptic

Light Source:

Laser

Maximum Scan Resolution:

5.20 mil

Depth of Field:

0" - 2"@5.2mil
0" - 5"@7.5mil
0" - 6.5"@10mil
0" - 8"@13mil
1" - 10"@21mil

Scan Pattern:

Single Line

Network & Communication

Bluetooth:

Yes

Battery Information

Battery Chemistry:

Lithium Ion (Li-Ion)

Physical Characteristics

Form Factor:

Handheld

Color:

White

Height:

2.2"

Width:

3.1"

Depth:

7.8"

Weight (Approximate):

7 oz

Miscellaneous

Additional Information:

USB Cable separate

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Item Numbers

UNSPSC: 43211701
