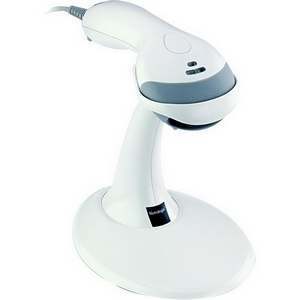

Metrologic MK9520-32A47 Barcode Scanner

Honeywell MK9520-32B47-6 Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell MK9520-32B47-6 Barcode Scanner.
Metrologic MS9520 Voyager - PS/2 kit, 1D Laser. Includes PS/2 coiled cable and stand. Color: Black.
  • Speed up customer's checkout experience
  • Perfect for applications that require direct association with a workstation or a notebook
  • Laser scan engine guarantees rapid error free data entry
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

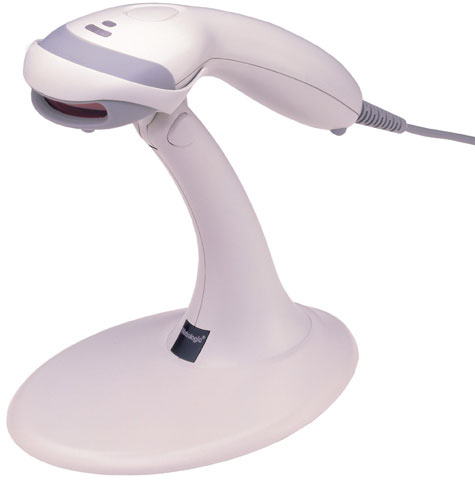

Metrologic MS9520 Voyager Barcode Scanner Model Overview
The MS9520 Voyager can be used as both a handheld and fixed projection scanner. The MS9520 Voyager is packed with all of the same features as the MS9540, with the exception of CodeGate. All units feature a five year warranty.
Metrologic MK9520-32A47 Barcode Scanner Overview

The Metrologic's Voyager MS9520 Bar Code Reader is a hand-held, single line reader that has united form with function in becoming the industry benchmark for value and performance. This sleek retail scanner features patented automatic infrared activation and decodes all standard 1D bar codes, including RSS codes. Standard features include EAS antenna integration for tag deactivation, power save mode, data editing, OPOS/JPOS compatibility for easy installation and user-replaceable cables.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Black
Height:
7.8"
Width:
1.8"
Depth:
1.6"
Weight (Approximate):
5.26 oz
Miscellaneous
Package Contents:
  • Voyager MS9520 Bar Code Reader
  • Cable
  • Stand
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • OCIA
  • IBM 468X/469X
  • USB

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Laser Class:

  • Class 1; IEC60825-1:1993/A1:1997+A2:2001
  • Class 1; EN60825-1:1994/A11:1996+A2:2001

EMC:

  • FCC Class B
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Metrologic MK9520-32A47 Barcode Scanner is also known as MET-MK952032A47 or MK952032A47.
