Metrologic MK5145-71A38 Barcode Scanner

Honeywell MK9540-72A38 Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell MK9540-72A38 Barcode Scanner.
Metrologic MS5145 Eclipse - USB Kit, 1D Laser. Includes USB cable. Color: Gray.
  • Speed up customer's checkout experience
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More

Need a different version? See all Metrologic MS5145 Eclipse Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare

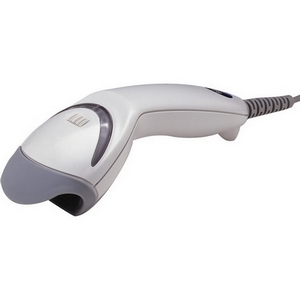

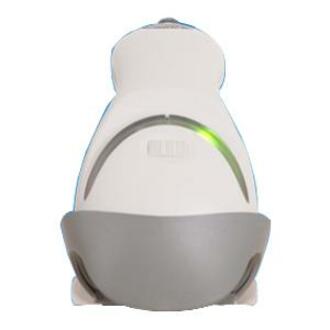

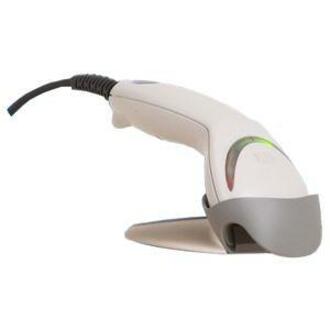

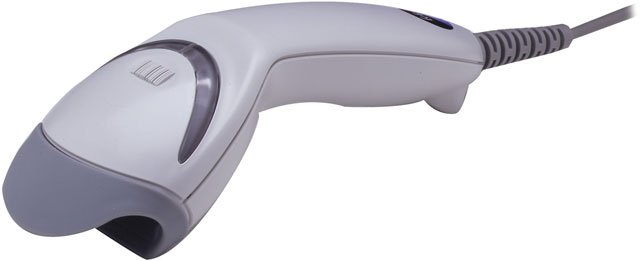

Metrologic MK5145-71A38 Barcode Scanner
Metrologic MK5145-71A38 Barcode Scanner Metrologic MK5145-71A38 Barcode Scanner Metrologic MK5145-71A38 Barcode Scanner Metrologic MK5145-71A38 Barcode Scanner Metrologic MK5145-71A38 Barcode Scanner
Metrologic MK5145-71A38 Barcode Scanner
Metrologic MK5145-71A38 Barcode Scanner
Metrologic MK5145-71A38 Barcode Scanner
Metrologic MK5145-71A38 Barcode Scanner
Metrologic MK5145-71A38 Barcode Scanner
Full specifications (PDF)
Metrologic MS5145 Eclipse Barcode Scanner Model Overview
The Metrologic MS5145 Eclipse is a single-line, hand-held laser scanner. Equipped with Metrologic's patented CodeGate technology, the MS5145 Eclipse can be used in a wide variety of applications. CodeGate technology allows the user to easily target the desired barcode and complete the data transmission with a simple press of a button. This combination makes the Metrologic MS5145 Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.
Metrologic MK5145-71A38 Barcode Scanner Overview

Eclipse MS5145 is a single-line, hand-held laser scanner. Equipped with CodeGate technology, Eclipse can easily target the desired bar code and complete the data transmission with a simple press of a button.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • All Standard 1D Symbologies
  • RSS-14
  • RSS-Limited
  • RSS-Expanded
Light Source:
Laser
Image Sensor Type:
CCD
Maximum Scan Resolution:
4 mil
Depth of Field:
  • 0.375" - 1.5"@4.1mil
  • 0" - 2.625"@5.7mil
  • 0" - 4.125"@10.4mil
  • 0" - 5.625"@13mil
  • 0" - 7.125"@26mil
Scan Pattern:
Single Line
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Gray
Height:
1.4"
Width:
2.5"
Depth:
6.7"
Weight (Approximate):
3.41 oz
Miscellaneous
Package Contents:
  • Eclipse MS5145 Bar Code Reader
  • MetroSelect Single-Line Configuration Guide
  • MS5100 Eclipse Series User's Guide
Additional Information:

USB Cable separate

Certifications & Standards:

Laser Class:

  • IEC 60825-1:1993+A1:1997+A2:2001 Class 1

EMC:

  • FCC
  • ICES-003 & EN55022 Class B
Item Numbers
GTIN: 0132017638010, 0493212325199, 0777786391843, 0783555036358, 4250204911022
UPC: 132017638010, 493212325199, 777786391843, 783555036358
EAN: 0132017638010, 0493212325199, 0777786391843, 0783555036358, 4250204911022
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Metrologic MK5145-71A38 Barcode Scanner is also known as MET-MK514571A38 or MK514571A38.
