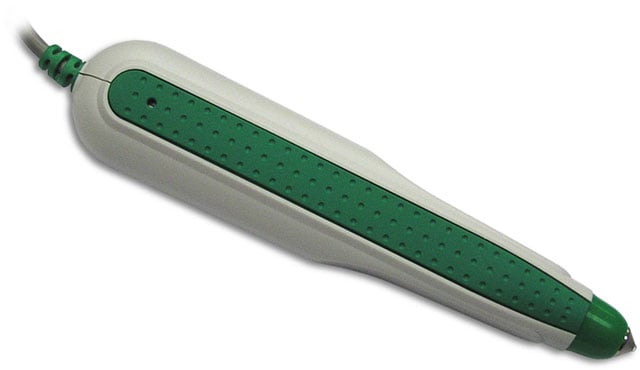

ID Tech EconoWand – Barcode Scanner – 1D – Cable Only

The EconoWand Low-Cost Contact Scanner from ID TECH is your ideal solution for efficient and reliable barcode scanning at an unbeatable price. Designed for both comfort and performance, this lightweight scanner quickly reads barcodes of varying lengths, including low-quality or damaged codes. It boasts a robust decoding technology that ensures accuracy and speed, making it suitable for many applications. With programmable features available, you can customize the EconoWand’s settings to fit your unique scanning requirements while maintaining ease of use.
Key Features

• High-speed contact scanning: Scans barcodes quickly and accurately, even small or high-density codes.
• Programmable for specialized usage: Customize symbologies, reading modes, beep tones, and more with ease.
• Ergonomic and lightweight: Designed for comfort during extended use, with no moving parts for durability.

Specifications

• Electrical:
• Light Source: 660 nm LED
• Sensor: Photo diode
• Operating Power: +5 VDC ± 5%
• Power Consumption: 65 mA ± 10 mA
• Environmental:
• Operating Temperature: 32° F to 122° F (0° C to 50° C)
• Storage Temperature: -4° F to 140° F (-20° C to 60° C)
• Relative Humidity: 0 to 95% non-condensing
• Drop Test: 5 feet (1.5m) to a hard surface
• ESD Protection: Functional after 15 KV discharge
• Mechanical:
• Depth of Field: 1 mm
• Resolution: 4 mil (0.1 mm) minimum
• PCS: 0.5 minimum
• Scan Speed: 2 ips to 30 ips (50mm to 750 mm)
• Tilt Angle: 45 degrees
• Symbologies: Code 39, UPC-A, UPC-E, Code 128, EAN-13/8, EAN 128, Interleaved 2 of 5
• Interfaces: USB, Keyboard Wedge, and RS-232 (Stainless Steel Housing)
• Indicator: Beep tone (good read)
• Dimensions: Length: 5.5 inches (139.7 mm), Width: 1.2 inches (30.5 mm)
• Weight: 4.24 oz (120 g)
• Cable: 3 feet (0.914 m)
