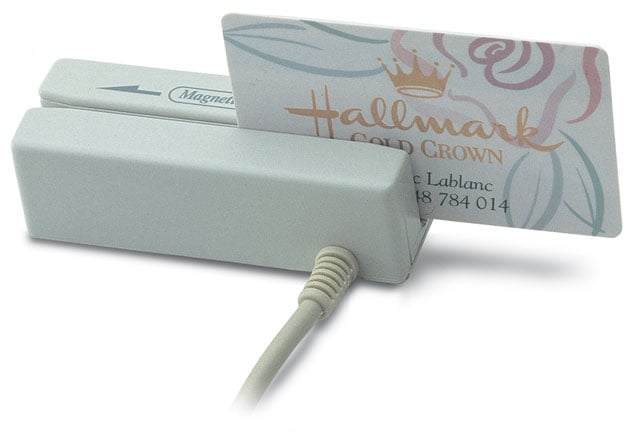

The MiniMag™ Compact Intelligent Magstripe Swipe Reader is designed for optimal performance in a space-saving format. Capable of reading up to 3 tracks of magnetic stripe card data in either direction, it enhances usability across various applications, including POS systems and loyalty programs. With innovative mounting options, the MiniMag easily adapts to your setup, ensuring a seamless integration. Its user-friendly software allows for customization, making it an ideal choice for businesses seeking efficiency combined with reliability.
Programmable Functions: Customize output format with a Windows-based MagSwipe Configuration Utility.
Exceptional Reliability: Reads up to 1,000,000 passes with a visual and audible indicator for successful reads.
Flexible Mounting: Can be mounted in various orientations using threaded inserts or Velcro.
Compact Design: With a size of 3.54 x 1.34 inches, perfect for limited spaces.
Specifications:
Electrical:
Power: 5 VDC +/-10%
Current: 1mA per track (max)
External Power Supply: 5 VDC/350mA (RS-232 only)
Environmental:
Operating Temperature: 32°F to 131°F (0°C to 55°C)
Storage Temperature: -22°F to 158°F (-30°C to 70°C)
Humidity: Maximum 95% non-condensing
Mechanical:
Dimensions: 3.54" x 1.34" x 1.10"
Weight: Approximately 4.6 oz.
Cable Length: 6-foot side exit (bottom exit available)
Indicators:
Tri-colored LED and beeper for read indication
ID Tech IDMB-334133BM Credit Card Reader Overview

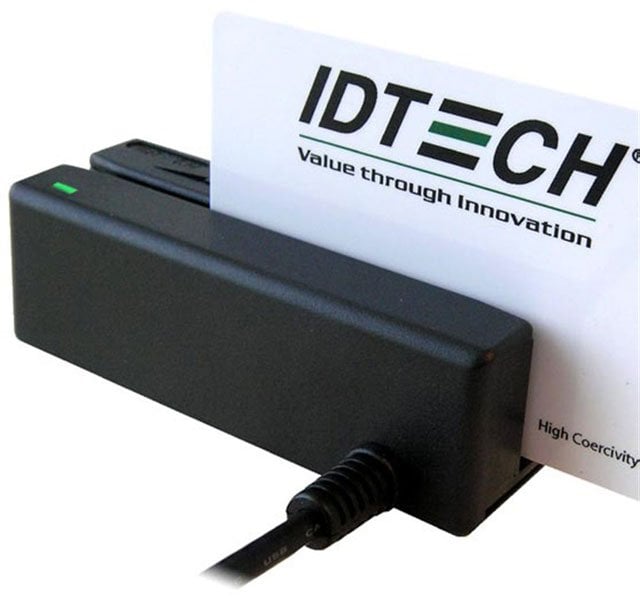

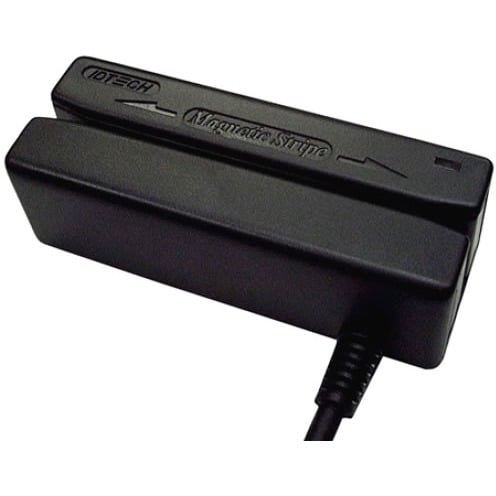

The MiniMag II is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 90 mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed & configured to match application and communication requirements. Programming is easy using ID TECH's Magswipe PC software.
The ID Tech IDMB-334133BM Credit Card Reader is also known as
IDT-IDMB334133BM
or IDMB334133BM.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
