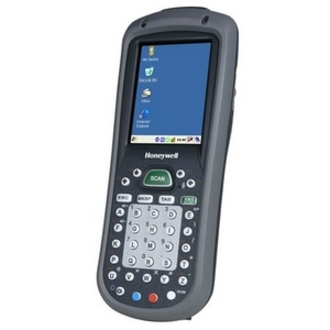

Honeywell 7600LP-122-21EE Mobile Computer

The Honeywell 7600LP-122-21EE Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell Dolphin 7600 - WLAN and WPAN (802.11b/g and Bluetooth) / 5300SR Imager with high-vis aiming pattern / 38 key / 128MB RAM x 128MB Flash / Windows CE 5.0
  • 2.8" LCD screen is ideal for scan intensive applications
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Alphanumeric keypad allows prompt data input
  • Windows CE .NET 5.0 has impressive features to offer along with a comfortable interface to work on
  • 128 MB standard memory seamlessly handles multiple programs together
  • Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
  • Experience the versatility of Bluetooth connectivity with your Honeywell Handheld Terminal
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

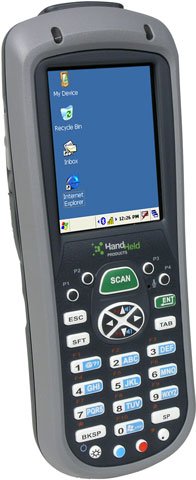

Honeywell Dolphin 7600 Mobile Computer Model Overview
The Dolphin 7600 mobile computer from Hand Held Products features Adaptus Imaging Technology 5.0 and Wireless LAN communication, which gives users the ability to collect, manage, and communicate data effectively and efficiently. Advanced power management ensures that the device is up and running for the duration of a work shift. Its durability and reliability make it ideal for use in retail, parcel delivery, postal, route accounting, field services, warehousing, and task management applications. The device connects easily to external devices via USB, Bluetooth, IrDA, and serial connectivity. A numeric 29-key keypad enables efficient one-handed operation while the backlight increases usability in most lighting conditions.
Honeywell 7600LP-122-21EE Mobile Computer Overview

The Dolphin 7600 device is Honeywell's most compact mobile computer, offering a range of features and functionality superior to other devices in its class. Combining the data collection and communication attributes of an industrial grade mobile computer with a more compact and cost effective design, the 7600 finally offers you the opportunity to deploy a powerful and reliable productivity tool, without hurting your bottom line.

Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Scanner Range:
Standard Range
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9
  • Code 11
  • Code 32 Pharmaceutical (PARAF)
  • Code 128
  • Code 93
  • EAN Add-ons
  • EAN Extensions
  • Coupon Code
  • EAN-13
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • Plessey
  • PosiCode
  • RSS
  • Straight 2 of 5 IATA
  • Straight 2 of 5 Industrial
  • Telepen
  • Trioptic Code
  • UCC/EAN 128
  • UPC
  • UPC-A
  • Aztec
  • Code 16K
  • Composite
  • DataMatrix
  • MaxiCode
  • OCR
  • PDF 417
  • QR Code
  • Aztec Mesa
  • Codablock F
  • RSS-14
  • UCC/EAN
  • OCR-A
  • OCR-B
  • Postnet
  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX(Netherlands) Post
  • Korea Post
  • Planet Code
Drop Specification (To Concrete):
47.24"
Air Electrostatic Discharge (+/-):
12kV DC
Direct Electrostatic Discharge (+/-):
8kV DC
Processor & Chipset
Processor Manufacturer:
Samsung
Processor Speed:
400 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Display & Graphics
Screen Size:
2.8"
Screen Mode:
QVGA
Screen Resolution:
240 x 320
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
38
Keyboard Type:
Alphanumeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g
Bluetooth:
Yes
Wireless Security:
  • WEP
  • WPA Personal
  • WPA Enterprise
  • WPA2 Personal
  • WPA2 Enterprise
  • EAP-TLS
  • TTLS
  • LEAP
  • PEAP
  • WiFi
Software
Operating System:
Windows CE .NET 5.0
Battery Information
Battery Capacity:
2200 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Width:
2.7"
Depth:
1.7"
Length:
7"
Weight (Approximate):
11.70 oz
Miscellaneous
Certifications & Standards:

Safety:

  • cUL 60950
  • NOM
  • EN60950
  • BSMI CN14336
  • CCC GB4943
  • PSB
  • SIRIM

EMC:

  • FCC Part 15 Class B
  • ICES-003
  • EN 301 489-1
  • EN 301 489-17
  • EN55022
  • EN55024
  • BSMI CNS13438
  • CCC GB9254
  • MIC
  • AS/NZS 3548

Radio:

  • FCC 15.247
  • RSS-210
  • COFETEL
  • EN 300 328-1
  • EN 300 328-2
  • SRRC ETS 300 328
  • IDA
  • SIRIM
  • MIC
  • ARIB STD-T33 & T66
  • AS/NZS 4771
Item Numbers
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Honeywell 7600LP-122-21EE Mobile Computer is also known as HHP-7600LP-122-21EE or 7600LP12221EE.
