Honeywell 7600BG-112-B4EE Mobile Computer

The Honeywell 7600BG-112-B4EE Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell Dolphin 7600 - WWAN (850/1900 GSM/GPRS EDGE) and WPAN (Bluetooth) / 5300SR Imager with high-vis aiming pattern / 29 key / 128MB RAM x 128MB Flash / Windows Mobile 6.0
  • Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
  • 2.8" LCD screen is ideal for scan intensive applications
  • Streamline your business processes with an imager that point-shoots with high-performance scanning
  • Alphanumeric keypad allows prompt data input
  • Windows Mobile 6.0 Classic offers familiar interface and the control of Web-based applications for greater ease of use and worker satisfaction
  • 128 MB standard memory for smooth multitasking without crashing or slowing down
  • microSD card slot gives an extra storage option
  • Wireless connectivity option lets you transmit data instantly from your handheld terminal to your network while keeping you up to date
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

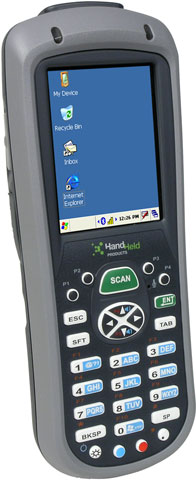

Honeywell Dolphin 7600 Mobile Computer Model Overview
The Dolphin 7600 mobile computer from Hand Held Products features Adaptus Imaging Technology 5.0 and Wireless LAN communication, which gives users the ability to collect, manage, and communicate data effectively and efficiently. Advanced power management ensures that the device is up and running for the duration of a work shift. Its durability and reliability make it ideal for use in retail, parcel delivery, postal, route accounting, field services, warehousing, and task management applications. The device connects easily to external devices via USB, Bluetooth, IrDA, and serial connectivity. A numeric 29-key keypad enables efficient one-handed operation while the backlight increases usability in most lighting conditions.
Honeywell 7600BG-112-B4EE Mobile Computer Overview

Dolphin 7600 Mobile Computer features the data collection and communication capabilities that will keeps businesses connected to their employees, their customers and their supply chain empowering them to work smarter.

Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Scanner Range:
Standard Range
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9
  • Code 11
  • Code 32
  • Pharmaceutical (PARAF)
  • Code 93
  • Code 128
  • EAN with Add-On
  • EAN with Extended Coupon Code
  • EAN-8
  • EAN-13
  • GS1-128
  • GS1 Databar
  • Interleaved 2 or 5
  • ISBT 128
  • Matrix 2 of 5
  • MSI
  • Plessey
  • PosiCode
  • Straight 2 of 5 IATA
  • Straight 2 of 5 Industrial
  • Telepen
  • Trioptic Code
  • UPC
  • UPC-A
  • UPC-E
  • Aztec
  • Codablock
  • Code 16K
  • Code 49
  • Composite
  • Data Matrix
  • GS1 Databar
  • MaxiCode
  • Micro PDF
  • OCR
  • PDF417
  • QR Code
  • Aztec Mesa
  • Codablock F
  • EAN·UCC
  • GS1 Databar-14
  • OCR-A
  • OCR-B
  • OCR-US Money Font
  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX (Netherlands) Post
  • Korea Post
  • Planet Code
Drop Specification (To Concrete):
60"
Air Electrostatic Discharge (+/-):
12kV DC
Direct Electrostatic Discharge (+/-):
8kV DC
Processor & Chipset
Processor Manufacturer:
Samsung
Processor Speed:
400 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Memory Card Slot:
Yes
Memory Card Supported:
microSD
Display & Graphics
Screen Size:
2.8"
Screen Mode:
QVGA
Screen Resolution:
240 x 320
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
29
Keyboard Type:
Alphanumeric
Network & Communication
Bluetooth:
Yes
Network Band:
Quad Band
Cellular Network Supported:
GSM
Wireless Security:
  • WEP
  • WPA
  • WPA2
  • EAP-TLS
  • TTLS
  • LEAP
  • PEAP
  • WiFi (WPA2)
  • Cisco
Software
Operating System:
Windows Mobile 6.0 Classic
Battery Information
Battery Capacity:
2200 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
7.1"
Width:
2.7"
Depth:
1.9"
Weight (Approximate):
14.30 oz
Miscellaneous
Package Contents:
  • Dolphin 7600 Mobile Computer
  • Battery
Additional Information:

Communications:

  • RS-232/USB Connector
  • IrDA port

Installed Applications:

  • Honeywell Power Tools
  • ITScriptNet Ready-To-Go Applications
Certifications & Standards:
  • IP54

Safety:

  • cUL 60950
  • NOM
  • EN60950
  • BSMI CN14336
  • CCC GB4943
  • PSB
  • SIRIM

EMC:

  • FCC Part 15 Class B
  • ICES-003
  • EN301 489-1
  • EN301 489-17
  • EN55022
  • EN55024
  • BSMI CNS13438
  • CCC GB9254
  • MIC
  • AS/NZS 3548
  • FCC Parts 22H & 24H
  • FCC SAR OET 65
  • EN301511
  • RSS-132/133

Radio:

  • FCC 15.247
  • RSS-210
  • COFE TEL
  • EN300 328-1
  • EN300 328-2
  • SRRC ETS 300 328
  • IDA
  • SIRIM
  • MIC
  • ARIB STD-T33 & T66
  • AS/NZS 4771
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Honeywell 7600BG-112-B4EE Mobile Computer is also known as HHP-7600BG-112-B4EE or 7600BG112B4EE.
