Honeywell 4600r – Barcode Scanner – 1D

Part Number: 4600RSF151CE
Model: 4600r
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Special Focus Imager, Supports TTL, RS-232, USB, Keyboard Wedge and IBM4683 interfaces supported. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# 46-00525).
Explore all Honeywell 4600r Barcode Scanners
Add to Quote

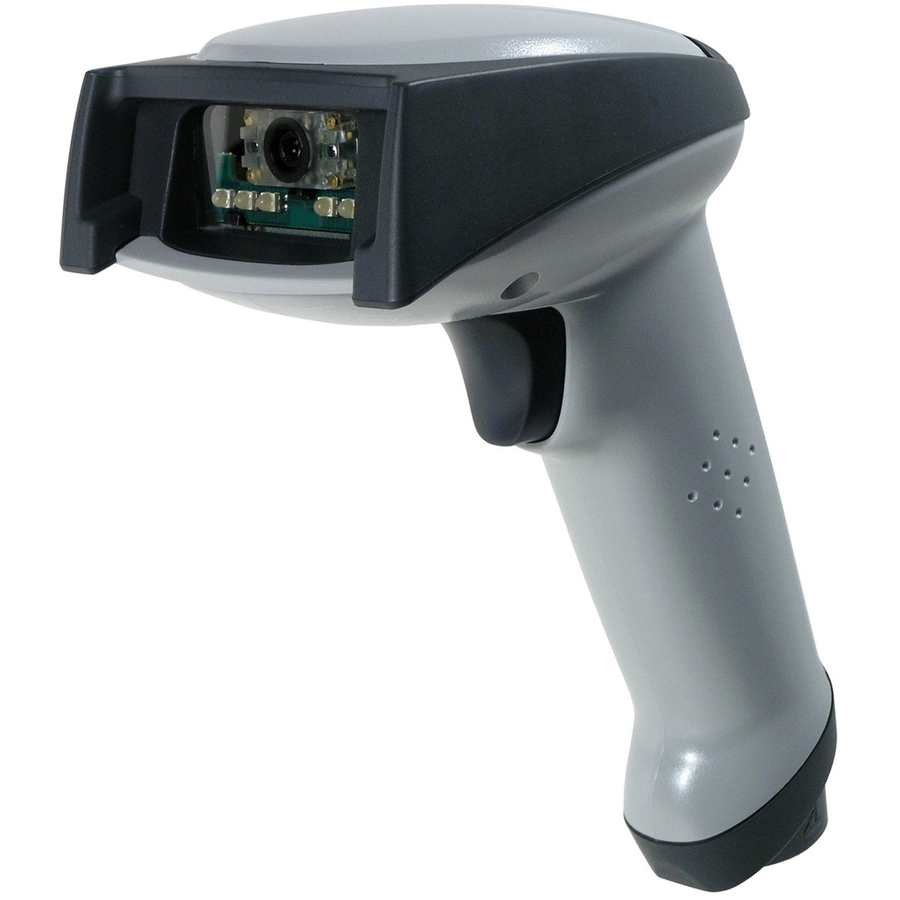

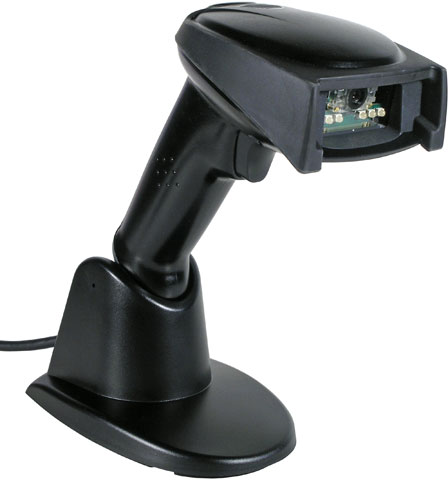

Honeywell 4600RSF151CE Barcode Scanner
Honeywell 4600RSF151CE Barcode Scanner
Honeywell 4600RSF151CE Barcode Scanner
Honeywell 4600RSF151CE Barcode Scanner Honeywell 4600RSF151CE Barcode Scanner Honeywell 4600RSF151CE Barcode Scanner
Full specifications (PDF)

Honeywell 4600r Barcode Scanner Model Overview

The Honeywell 4600r provides high-performance presentation scanning of linear barcodes, making it ideal for fast-paced POS scanning applications. In addition, its ability to read all 2D barcodes, plus capture digital images, enables new applications that increase productivity - all with one device. The 4600r's unique Streaming Presentation Mode feature, combined with its omni-directional reading capability, eliminates the need for operators to stop and hold an item in front of the scanner - simply swipe and go. In addition, the 4600r features an advanced illumination system optimized for high performance applications that require presentation or "fly-by" scanning and the reading of highly reflective items.
Honeywell 4600RSF151CE Barcode Scanner Overview

The 4600rSF Bar Code Reader provides fast reading of linear bar codes, making it ideal for routine POS scanning applications. In addition, its ability to read all 2D bar codes, plus capture digital images, enables new applications that increase productivity all with one device.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN-UCC Composite
  • Codabar
  • Code 39
  • Interleaved 2 of 5
  • Code 93
  • Code 128
  • UPC
  • EAN
  • RSS
  • Codablock F
  • Postnet
  • PLANET
  • British Post
  • Canadian Post
  • Japanese Post
  • KIX(Netherlands) Post
  • OCR-A
  • OCR-B
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
15 mil
Depth of Field:
  • 3.6" - 4.2"@5mil - Linear
  • 2.2" - 7.6"@10mil - Linear
  • 2" - 8.8"@13mil - UPC
  • 2.8" - 5.9"@6.6mil - PDF417
  • 2.2" - 7.5"@10mil - PDF417
  • 1.8" - 7.4"@15mil - Data Matrix
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
6.2"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • USB
  • TTL level RS-232
  • TTL level Serial Wedge
  • IBM 468X/469X

    • Certifications & Standards:
    • RoHS

    FCC:

    • Part 15 Class A

    Canada:

    • CES-003 Class A

    CE:

    • CB Scheme EN60950-1
    • IEC 60825-1
    • EN55022 Class A
    • EN55024
    • EN61000-3-2
    • EN61000-3-3

    UL and cUL:

    • UL 60950-1:2003
    • CSA C22.2 No 60950-1-03

    GS-Mark:

    • TUV/GS Mark approval for EN60950-1:2003 and IEC60825-1

    Mexico:

    • NOM-NYCE
    • AUS/NZ: C-Tick:AS/NZ 3548
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701

    Recommended Accessories

    Category

    • Cables, Connectors, and Adapters (12)
    • Mounting Hardware and Stands (2)
    • Scanner Accessories (2)

    Recommended Accessories for Model: Honeywell 4600RSF151CE Barcode Scanner

    Top Cables, Connectors, and Adapters Purchased With Honeywell 4600RSF151CE

    See All Cables, Connectors, and Adapters for Honeywell 4600RSF151CE Barcode Scanner >

    Top Mounting Hardware and Stands Purchased With Honeywell 4600RSF151CE

    Top Scanner Accessories Purchased With Honeywell 4600RSF151CE

    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Honeywell 4600RSF151CE Barcode Scanner is also known as HHP-4600RSF151CE or 4600RSF151CE.
