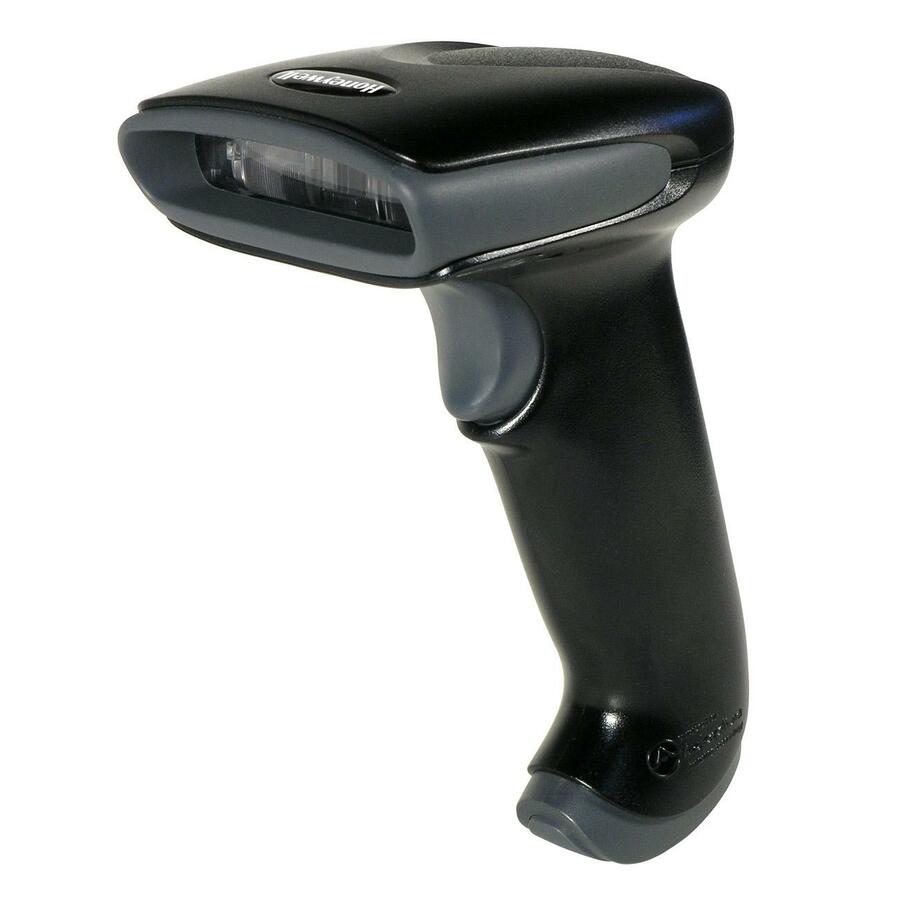

Honeywell 3800G14-KBWKITE Barcode Scanner

The Honeywell 3800G14-KBWKITE Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Honeywell 3800g - PS/2 kit, 1D Linear Imager. Includes coiled PS/2 cable. Color: Black.
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Scan barcodes with a staggering speed of 270 scan/s
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

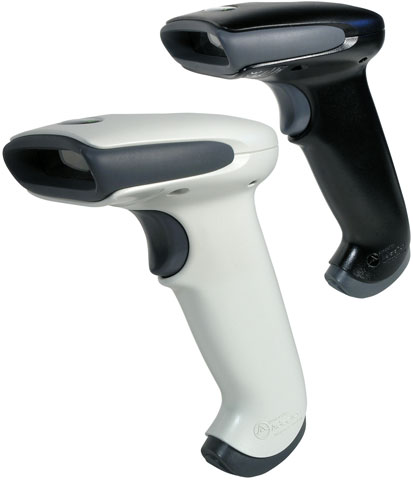

Honeywell 3800g Barcode Scanner Model Overview
The 3800g is built to deliver world-class performance for a broad range of applications in retail, manufacturing, warehousing, distribution and all points in between. Featuring the ideal balance of performance, durability, ergonomics and connectivity options, the 3800g will deliver years of hassle-free service. The 3800g features improved depth of field, fast barcode reading and high tolerance to motion, plus a convenient variety of connectivity options, including USB, PS/2 Keyboard Wedge and RS232 Serial.
Honeywell 3800G14-KBWKITE Barcode Scanner Overview

The first linear imager 3800g Bar Code Reader to earn the Adaptus Imaging Technology brand, the new 3800g is powered by Adaptus 5.0, delivering breakthrough linear imaging performance and versatility. Fast, intuitive bar code reading across a range of high and low density codes, the 3800g quickly reads even damaged and poorly printed bar codes all in a single device.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Straight 2 of 5 Industrial
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • GS1 DataBar
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2" - 8"@5mil
  • 1.5" - 12"@7.5mil
  • 1" - 15"@10mil - 80% UPC
  • 0.5" - 18"@13mil - 100% UPC
  • 1" - 22"@15mil
  • 1" - 26"@20mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
5.9"
Width:
3.1"
Depth:
4.4"
Weight (Approximate):
5.60 oz
Miscellaneous
Package Contents:
  • 3800g Bar Code Reader
  • Coiled Keyboard Wedge Cable
  • Quick Start Guide
Additional Information:

Supported Interfaces:

  • USB
  • TTL level RS-232

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED Safety: Class 1
  • UL
  • cUL listed
  • RoHS
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 3800G14-KBWKITE Barcode Scanner is also known as HHP-3800G14-KBWKITE or 3800G14KBWKITE.
