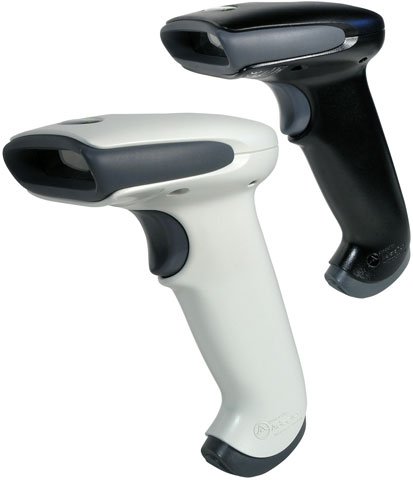

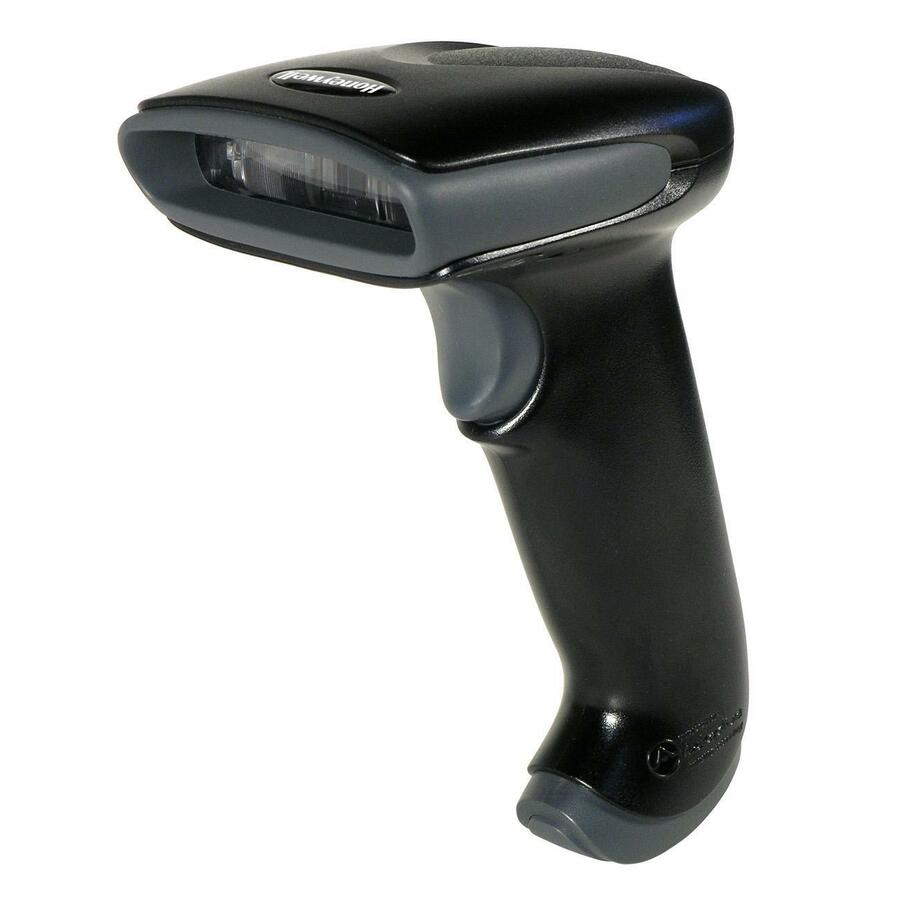

Honeywell 3800G04E Barcode Scanner

Honeywell 1300G-1 Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell 1300G-1 Barcode Scanner.
Honeywell 3800g - SCANNER ONLY, 1D Linear Imager, RS-232. Cables must be purchased separately. These include RS-232 Serial cables (Part# 42206422-01E) and a power supply (Part# 46-00525). Color: White.
  • Scan barcodes with a staggering speed of 270 scan/s
  • Allows productive and precise reading of 1D barcodes
  • LED aimer is a perfect choice for patient-facing applications
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Honeywell 3800g Barcode Scanner Model Overview
The 3800g is built to deliver world-class performance for a broad range of applications in retail, manufacturing, warehousing, distribution and all points in between. Featuring the ideal balance of performance, durability, ergonomics and connectivity options, the 3800g will deliver years of hassle-free service. The 3800g features improved depth of field, fast barcode reading and high tolerance to motion, plus a convenient variety of connectivity options, including USB, PS/2 Keyboard Wedge and RS232 Serial.
Honeywell 3800G04E Barcode Scanner Overview

The 3800g is the first linear imager to earn the Adaptus Imaging Technology brand, the new 3800g is powered by Adaptus 5.0, delivering breakthrough linear imaging performance and versatility. Fast, intuitive bar code reading across a range of high and low density codes, the 3800g quickly reads even damaged and poorly printed bar codes - all in a single device.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
  • Sunrise 2005
  • GTIN Compliant
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2" - 8"@5mil
  • 1.5" - 12"@7.5mil
  • 1" - 15"@10mil - 80% UPC
  • 0.5" - 18"@13mil - 100% UPC
  • 1" - 22"@15mil
  • 1" - 26"@20mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
White
Height:
5.9"
Width:
3.1"
Depth:
4.4"
Weight (Approximate):
5.60 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • USB
  • TTL level RS-232
  • Certifications & Standards:
    • RoHS
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED

    Safety:

    • Class 1
    • UL
    • cUL listed
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    GTIN: 0600140881042
    UPC: 600140881042
    EAN: 0600140881042
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Honeywell 3800G04E Barcode Scanner is also known as HHP-3800G04E or 3800G04E.
