Full specifications (PDF)
Maximum Operating Range:
8"

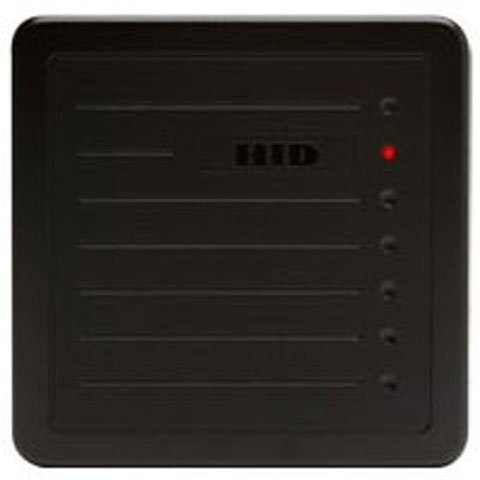

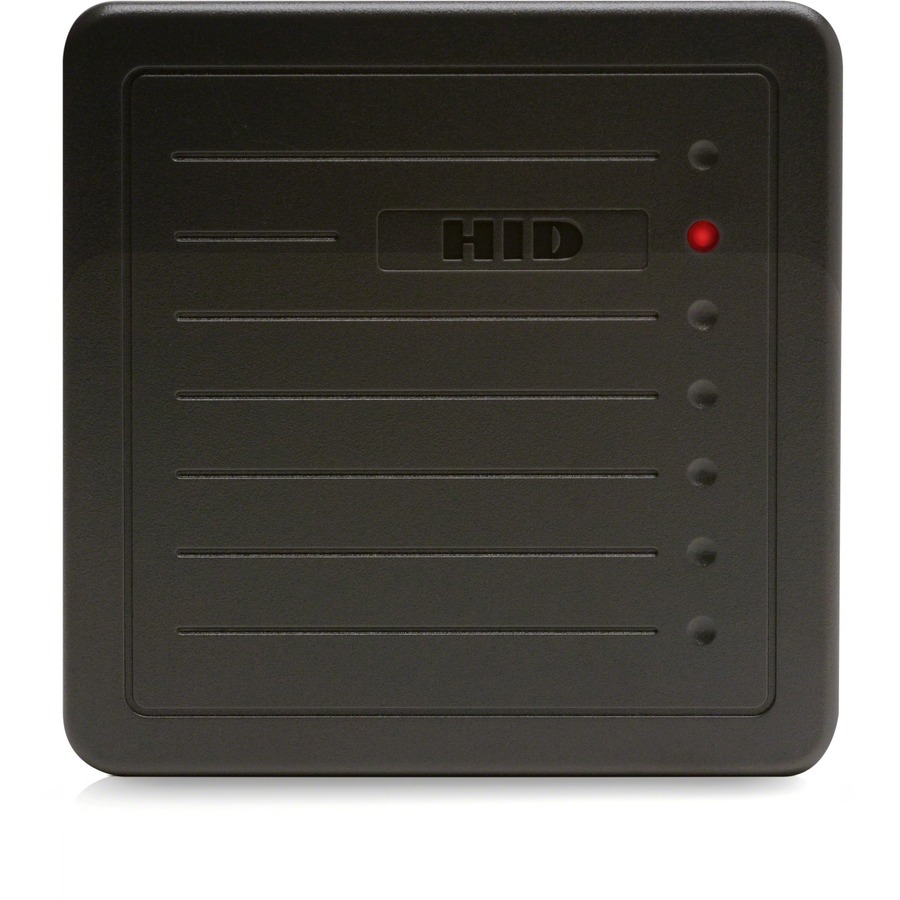

HID 5455BGN04 Access Control Reader
Part Number:
5455BGN04
Model:
5455
HID 5455 Access Control Reader Model Overview
Introducing the HID ProxPro® II Reader, a cutting-edge access control solution by ASSA ABLOY. Designed for ultimate reliability, ease of installation, and multilingual support, this proximity card reader comes in a durable weatherproof enclosure. Perfect for both indoor and outdoor applications, it features a compact two-piece design that simplifies installation on various surfaces, including directly on metal. The ProxPro® II ensures a consistent read range and low power consumption while offering flexible mounting options. Whether in English, French, or Japanese, the user-friendly installation manual makes setup straightforward for international users.
Key Features:
- Two-piece design for easy installation.
- Available with Wiegand or Clock-and-Data interface.
- Multicolor LED and internal or host control of LED and beeper.
- Mounts directly on metal without impacting performance.
- Multilingual installation manual included.
- Weatherproof and vandal-resistant design.
Specifications:
- Supply Voltages: 5V and 12V
- Current Draw: Average 25 mA at 12 VDC; Peak 125 mA at 12 VDC
- Read Range: Up to 9" (22 cm) for ProxCard® II
- Operating Temperature: -22° to 150° F (-30° to 65° C)
- Weatherproof Rating: IP55
- Dimensions: 5.00" x 5.00" x 1.00" (12.7 x 12.7 x 2.54 cm)
- Weight: 13.6 oz. (385 g)
- Transmit Frequency: 125 kHz
HID 5455BGN04 Access Control Reader Overview
HID's ProxPro® II proximity reader for access control combines performance, reliability, and ease of installation into a two-piece, weatherproof potted enclosure. International users will appreciate the multilingual installation manual, lower voltage requirement and flexible mounting options.
- Ideal for medium-range applications.
- Available with Wiegand or Clock-and-Data interface.
- Optional glass mount kit available for mounting the reader behind glass.
- Potted reader suitable for indoor or outdoor use.
- Available in black, white, gray or beige.
- 18" (45 cm) wire pigtail standard; consult factory for 9' (2.7 m) pigtail available by special order.
- Two-piece reader design allows for easy installation.
- Available with a Wiegand or Clock-and-Data interface.
- Provides high reliability, consistent read range and low power consumption.
- Features include multicolor LED and internal control or host control of the LED and beeper.
- Mounts directly on metal with minimal impact on the read range performance. Optional kit enables mounting behind glass.
- Compare features of the ProxPro II to the original ProxPro reader
Technical Information
Interfaces/Ports
Host Interface:
Wiegand
Physical Characteristics
Product Color:
Gray
Height:
5"
Width:
5"
Depth:
1"
Weight (Approximate):
13.60 oz
Miscellaneous
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0639399227172
UPC:
639399227172
EAN:
0639399227172
UNSPSC:
43201815
