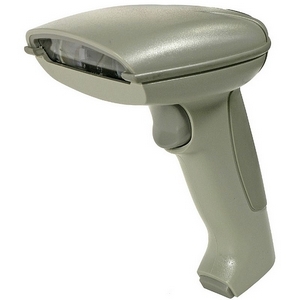

Hand Held 3800PDF-MDKITE Barcode Scanner

The Hand Held 3800PDF-MDKITE Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Hand Held ImageTeam 3800 - PDF capable, Keyboard wedge kit, Cable, RoHS unit, Holder, User Guide
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Scan barcodes with a staggering speed of 270 scan/s
Read More

Need a different version? See all Hand Held ImageTeam 3800 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Hand Held 3800PDF-MDKITE Barcode Scanner
Hand Held 3800PDF-MDKITE Barcode Scanner Hand Held 3800PDF-MDKITE Barcode Scanner Hand Held 3800PDF-MDKITE Barcode Scanner
Hand Held 3800PDF-MDKITE Barcode Scanner
Hand Held 3800PDF-MDKITE Barcode Scanner
Hand Held 3800PDF-MDKITE Barcode Scanner
Full specifications (PDF)
Hand Held ImageTeam 3800 Barcode Scanner Model Overview
This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800PDF-MDKITE Barcode Scanner Overview

The 3800PDF Bar Code Reader uses linear imaging technology to set a new standard for handheld scanners by combining a bright, sharp aiming line with high resolution imaging to deliver exceptional reading performance.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • PDF417
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
15 mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Color:
Beige
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Package Contents:
  • 3800PDF Bar Code Reader
  • Holder
  • Coiled Keyboard Wedge Cable
  • User Documentation
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Wand Emulation

USB Cable separate

Platform Supported:
PC
Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED Safety: Class 1
  • UL
  • cUL listed
  • TUV
  • RoHS
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 3800PDF-MDKITE Barcode Scanner is also known as HHP-3800PDF-MDKITE or 3800PDFMDKITE.
