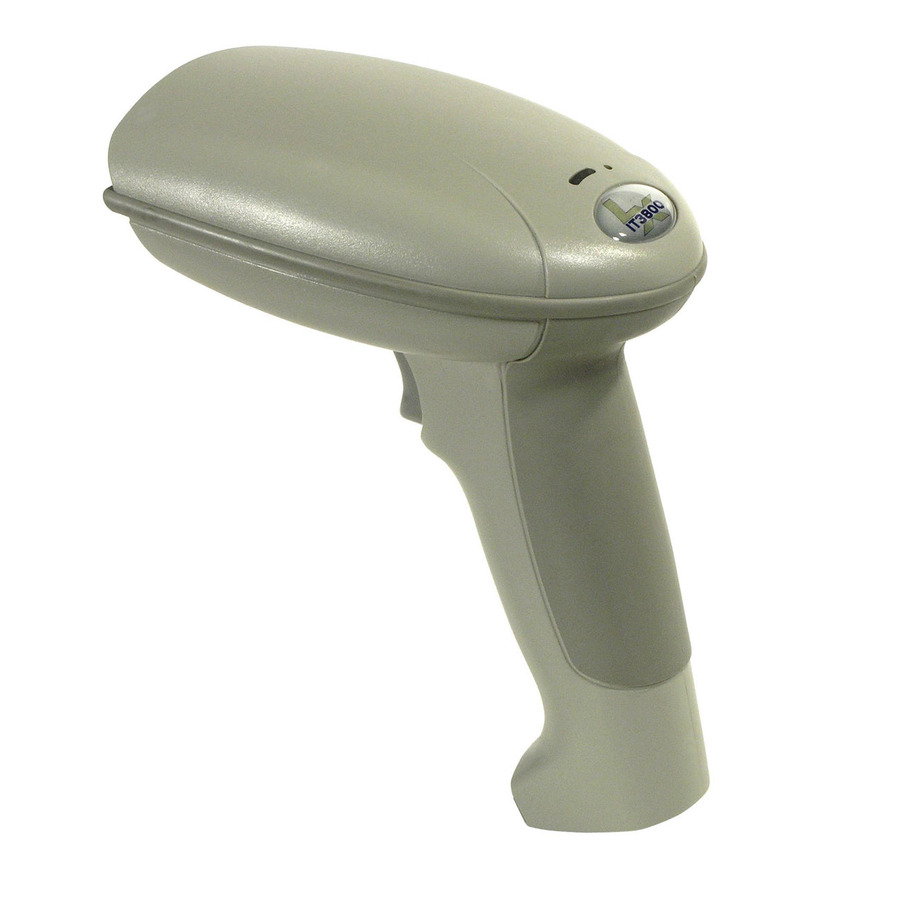

Hand Held 3800LX-15 Barcode Scanner

Honeywell 3800G05E Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell 3800G05E Barcode Scanner.
Hand Held ImageTeam 3800 - extended long range IBM USB, Beige, Requires cable; NEW #3800G05E
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • LED aimer is a perfect choice for patient-facing applications
  • Scan barcodes with a staggering speed of 270 scan/s
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Hand Held ImageTeam 3800 Barcode Scanner Model Overview
This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800LX-15 Barcode Scanner Overview

The ImageTeam(IT) 3800LX long range linear handheld imager combines a bright, sharp aiming line with extended reading distance capabilities to deliver exceptional performance in any lighting conditions. Its solid construction, rugged design and no internal moving parts ensures years of reliable service, even in demanding work environments. The IT3800LX connects to all popular PCs, POS systems, and portable data terminals. Backed by an industry leading 5-year warranty, the IT3800LX is ideal for applications such as retail point-of-sale, in-store inventory, document management, transaction processing, and outdoor retail applications.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9
  • PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
6.50 mil
Depth of Field:
  • 2" - 16"@100% UPC
  • 3" - 36"@40mil
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Additional Information:

Decoded Output USB Retail Interface

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED

Safety:

  • Class 1
  • UL
  • cUL listed
  • TÜV
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 3800LX-15 Barcode Scanner is also known as 3800LX15
