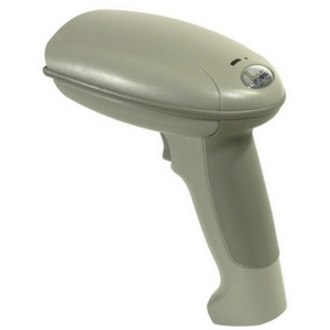

Hand Held 3800LX-12E Barcode Scanner

Honeywell 3800G04E Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell 3800G04E Barcode Scanner.
Hand Held ImageTeam 3800 - extended long range linear imager, Decoded output, Commercial interface, RoHS Compliant.
  • Perfect for applications that require direct association with a workstation or a notebook
  • LED aimer is a perfect choice for patient-facing applications
  • Scan barcodes with a staggering speed of 270 scan/s
Read More

Need a different version? See all Hand Held ImageTeam 3800 Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Hand Held 3800LX-12E Barcode Scanner
Hand Held 3800LX-12E Barcode Scanner Hand Held 3800LX-12E Barcode Scanner
Hand Held 3800LX-12E Barcode Scanner
Hand Held 3800LX-12E Barcode Scanner
Full specifications (PDF)
Hand Held ImageTeam 3800 Barcode Scanner Model Overview
This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800LX-12E Barcode Scanner Overview

The IMAGETEAM 3800LX is a longer range, high performance, hand held Bar Code Reader. The IT3800LX uses linear imaging technology to match the reading distance of standard range lasers with a bright, sharp aiming line and high resolution imaging to deliver exceptional reading

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
6.50 mil
Depth of Field:
  • 1.5" - 14"@100% UPC
Scan Pattern:
Linear
Cable Type Included:
USB
Interfaces/Ports
Host Interface:
Keyboard Wedge
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
Beige
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Package Contents:
  • IMAGETEAM 3800LX Bar Code Reader
  • USB Cable
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • RS-232
  • USB

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED Safety: Class 1
  • UL
  • cUL listed
  • TUV
  • RoHS
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 3800LX-12E Barcode Scanner is also known as HHP-3800LX-12E or 3800LX12E.
