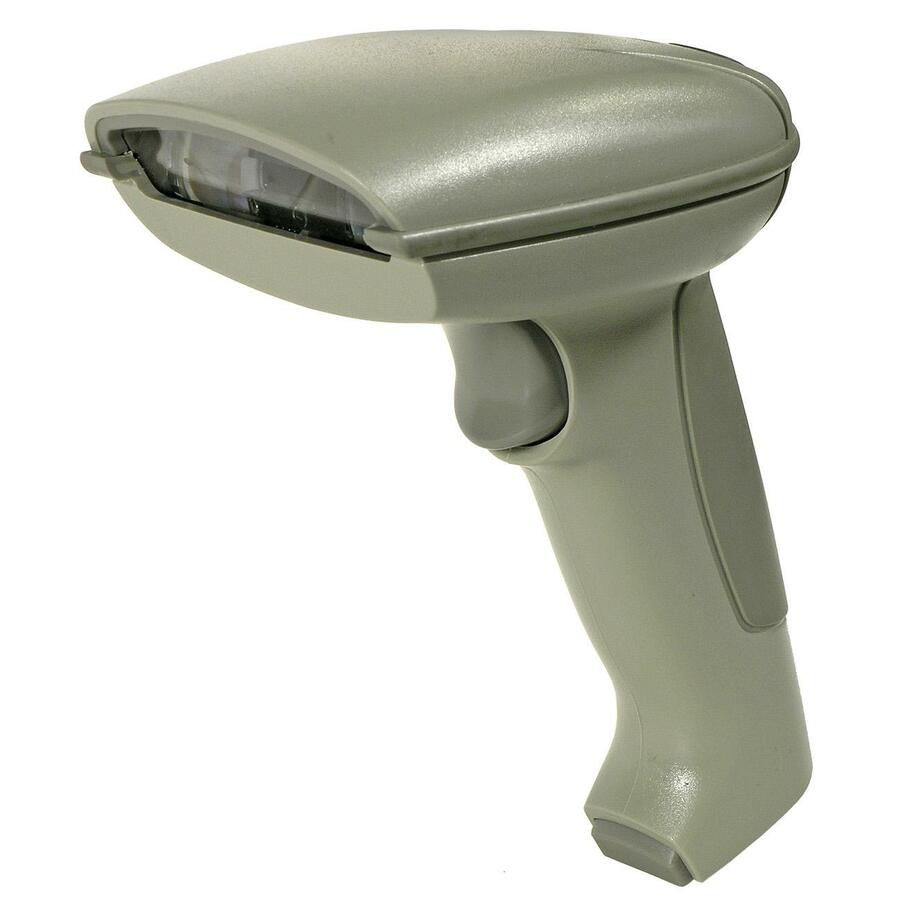

Hand Held 3800LR-13E Barcode Scanner

The Hand Held 3800LR-13E Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Hand Held ImageTeam 3800 - Scanner only with long range, Decoded output, true RS-232 interface, RoHS compliant. Cables not included. See accessories.
  • LED aimer is a perfect choice for patient-facing applications
  • Scan barcodes with a staggering speed of 270 scan/s
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

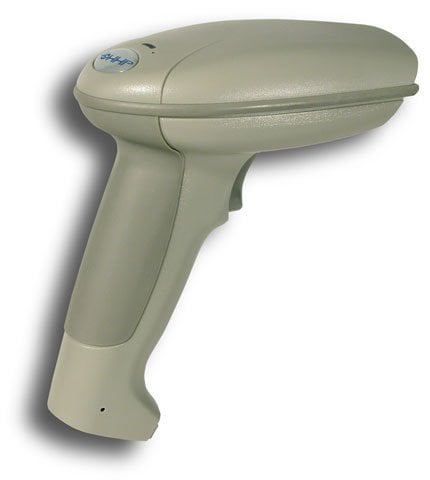

Hand Held ImageTeam 3800 Barcode Scanner Model Overview
This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800LR-13E Barcode Scanner Overview

The 3800 LR is a high performance, handheld Bar Code Reader. The 3800LR uses linear imaging technology to set new standard for handheld scanners by combining a bright, sharp aiming line with high resolution imaging to deliver exceptional reading performance. The 3800 LR handle is smoothly contoured to fit all size hands, plus has a soft grip area to add comfort and prevent slipping. Its aesthetically pleasing look surrounds a rugged, durable construction, built for demanding work environments.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
  • PDF 417
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2.5" - 4"@3mil - 100% UPC
  • 2.5" - 6.5"@5mil
  • 2" - 7.5"@7.5mil
  • 1" - 9.5"@13mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
Beige
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Additional Information:

Interface Connectivity Support:

  • RS-232

USB Cable separate

Platform Supported:
  • PC
  • Mac
Certifications & Standards:
  • RoHS Compliance
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1

LED Safety:

  • Class 1
  • UL
  • cUL
  • TUV
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 3800LR-13E Barcode Scanner is also known as HHP-3800LR-13E or 3800LR13E.
