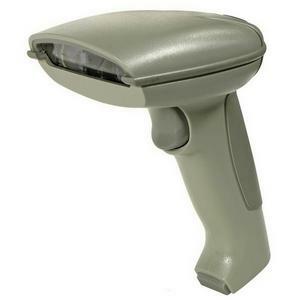

Hand Held 3800LR-12USBKIT Barcode Scanner

The Hand Held 3800LR-12USBKIT Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Hand Held ImageTeam 3800 - long range USB kit. Includes long range linear imager, USB cable & holder.
  • Minimizes your manual entry and provides reliable scanning in a durable form factor
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Scan barcodes with a staggering speed of 270 scan/s
Read More

Need a different version? See all Hand Held ImageTeam 3800 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Hand Held 3800LR-12USBKIT Barcode Scanner
Hand Held 3800LR-12USBKIT Barcode Scanner Hand Held 3800LR-12USBKIT Barcode Scanner Hand Held 3800LR-12USBKIT Barcode Scanner
Hand Held 3800LR-12USBKIT Barcode Scanner
Hand Held 3800LR-12USBKIT Barcode Scanner
Hand Held 3800LR-12USBKIT Barcode Scanner
Full specifications (PDF)
Hand Held ImageTeam 3800 Barcode Scanner Model Overview
This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800LR-12USBKIT Barcode Scanner Overview

The IMAGETEAM 3800LR Bar Code Reader combines a bright, sharp aiming line with extended reading distance capabilities to deliver exceptional performance in any lighting conditions.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Codabar
  • PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
  • PDF 417
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 2.5" - 4"@3mil
  • 2" - 7.5"@7.5mil
  • 1" - 9.5"@13mil
Cable Type Included:
USB
Interfaces/Ports
Host Interface:
USB
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Package Contents:
  • 3800LR Bar Code Reader
  • USB cable
Additional Information:

USB Cable

USB Cable separate

Platform Supported:
  • PC
  • Mac
Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED

Safety:

  • Class 1
  • UL
  • cUL listed
  • TÜV
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0835712001706
UPC: 835712001706
EAN: 0835712001706
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 3800LR-12USBKIT Barcode Scanner is also known as HHP-3800LR-12USBKIT or 3800LR12USBKIT.
