Fujitsu KA02066-D125 Receipt Printer

The Fujitsu KA02066-D125 Receipt Printer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Fujitsu FP-1000 - Fujitsu FP-1000 Direct Thermal Printer - Monochrome - Black - Desktop - Receipt Print - USB - Serial - 3.15" Print Width - 7.09 in/s Mono - 203 dpi - Receipt - 3.15" Label Width - 5.91" Label Length
  • Conveniently print your receipts
  • Produce high-quality documents with this monochrome printer to increase your productivity
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

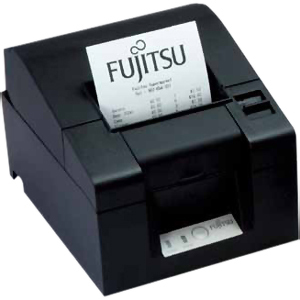

Fujitsu FP-1000 Receipt Printer Model Overview
The Fujitsu FP-1000 prints small text, specialized fonts, graphics, and one- and two-dimensional barcodes with 203-dpi resolution at a 180 mm/second print speed. Its three-inch thermal printer mechanism carries lifetime of 60 million lines, with integrated paper feed and built-in paper guide that supports selectable paper widths (58-mm and 80-mm) and paper rolls up to 83-mm in diameter. Additional features include an integrated cutter, buzzer, cash drawer kick-out, and drop-in paper loading. It supports Linux SUSE 9.3, Windows, WePO (Web Print Object), and ESC/POS emulation, as well as RS-232C Serial, USB 2.0, and Ethernet interfaces. For mounting flexibility on tabletop or wall, receipts can feed out from either the top or the front.
Fujitsu KA02066-D125 Receipt Printer Overview

Fujitsu standalone thermal printer. FP-1000, achieves high reliability and good cost-efficiency for POS system receipt printing and order printing in commercial kitchens.

Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
7.09 in/s
Maximum Print Resolution:
203 dpi
Maximum Print Width:
3.15"
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN/JAN-13
  • EAN/JAN-8
  • Code 39
  • ITF
  • Codabar
  • NW-7
  • Code 93
  • Code 128
  • QR Code
Application/Usage:
Desktop
Memory
Standard Memory:
4 KB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Cutter
Cutter:
Yes
Cutting Method:
Automatic
Media Types & Handling
Media Type:
Receipt
Media Thickness:
3.35 mil
Maximum Roll Diameter:
3.27"
Maximum Label Width:
3.15"
Maximum Label Length:
5.91"
Fonts & Emulation
Language Emulation:
ESC/POS
Power Description
Power Source:
Power Adapter
Input Voltage:
24 V DC
Maximum Power Consumption:
150 W
Operating Power Consumption:
38 W
Standby Power Consumption:
3 W
Physical Characteristics
Color:
Black
Height:
6.5"
Width:
5.7"
Depth:
7.2"
Weight (Approximate):
3.75 lb
Miscellaneous
Package Contents:
  • FP-1000 Receipt Printer
  • Quick Start Guide
  • Software and Driver CD
  • Test Paper Roll
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 45101512
