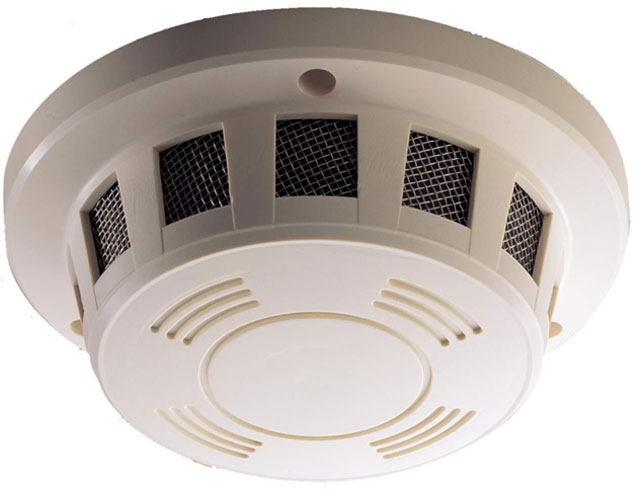

EverFocus ESD 200 Color Smoke Detector Security Camera
EverFocus ESD 200 Color Smoke Detector -
The EverFocus ESD 200 Color Smoke Detector features a conventional smoke detector built with a discreet camera for surveillance. It can accommodate up to 4 cameras to effectively view 360 degrees of a room from one location. Its High Sensitivity 0.3lux/F=1.2 and fast electronic shutter allows the camera to be used in various light levels. The easily adjustable cameras and lenses allow for the best viewing angles.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Get help from a Barcoding Expert!
EverFocus ESD 200 Color Smoke Detector Security Camera Model Overview
The ESD200 Color Camera is an advanced surveillance solution seamlessly integrated into a conventional smoke detector design. With a powerful 1/3" Color Sony CCD sensor, it delivers 380TVL of standard resolution, ensuring clear and detailed imagery. Its ability to accommodate up to two color CCD cameras allows for a panoramic view of your indoor spaces, while the high sensitivity of 0.3lux/F=1.2 combined with a fast electronic shutter makes it effective in various lighting conditions. Easily adjustable for optimal viewing angles, this discreet camera is perfect for enhancing security without compromising on aesthetics.
Key Features:
- Discreet surveillance integrated into a conventional smoke detector
- Accommodates up to 2 color CCD cameras for expanded coverage
- High sensitivity of 0.3lux/F=1.2 for operational effectiveness in diverse lighting
- Fast electronic shutter and adjustable cameras for optimal angles
- Available with interchangeable lenses: f=4.3mm, 6.0mm, or 8.0mm
Specifications:
- Video format: NTSC, PAL
- Picture element: 512(H) x 492(V)
- Horizontal resolution: 380 TV lines
- Sensitivity: 0.3lux/F=1.2
- S/N Ratio: 48dB (AGC off)
- Electronic shutter: up to 1/100,000
- Back light compensation: On
- Auto gain control: On
- Auto white balance: Yes
- IRIS: Fixed
- Gamma correction: >0.45
- Power source: 12VDC ±10%, 200mA
- Dimensions: 150(O.D.) x 50(H) mm
- Operating temperature: 0 °C - +50 °C, 20-80% humidity
- Weight: 320g
- Lens Options: f=4.3mm, F-2.0 (Optional 6.0/8.0mm)
