Elo E734455 Touchscreen

Part Number: E734455
Model: 1739L
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
17"
Viewable Screen Size
17"
Screen Mode
SXGA
Screen Surface
Anti-glare

Product Description:

  Elo 1739L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 7.20 ms - 17" Class - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 300 Nit - USB - VGA - Black - China RoHS - 3 Year
Explore all Elo 1739L Touchscreens
Add to Quote
Elo E734455 Touchscreen
Elo E734455 Touchscreen
Elo E734455 Touchscreen Elo E734455 Touchscreen
Full specifications (PDF)

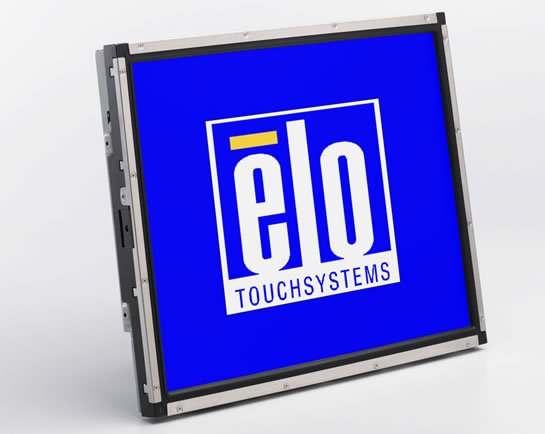

Elo 1739L Touchscreen Model Overview

The Elo 1739L features a wide viewing angle panel along with a unique, injection-molded minibezel and virtually invisible watertight seal. Available with clear glass IntelliTouch surface wave for the utmost in optical quality, the 1739L is ideal for kiosk applications.
Elo E734455 Touchscreen Overview

Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The 1739L Open-frame Touchscreen LCD Monitor features a wide viewing angle panel along with a unique, injection-molded minibezel and virtually invisible watertight seal.

Full specifications (PDF)
Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Screen Surface:
Anti-glare
Response Time:
7.20 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Mount Type:
  • Bracket-mountable
  • Rack-mountable
Horizontal Frequency:
80 kHz
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
300 Nit
Audio
Speakers:
No
Touchscreen Information
Touchscreen:
Yes
Interfaces/Ports
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Operating Power Consumption:
30 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
12"
Width:
14.5"
Depth:
1.9"
Weight (Approximate):
8.82 lb
Miscellaneous
Package Contents:
  • 1739L Open-frame Touchscreen LCD Monitor
  • Detachable Touch Cable
  • Video Cable
Environmentally Friendly:
Yes
Environmental Certification:
China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0151903666753, 0741149318310, 5711045535888, 7411493183102
UPC: 151903666753, 741149318310
EAN: 0151903666753, 0741149318310, 5711045535888, 7411493183102
UNSPSC: 43211903
