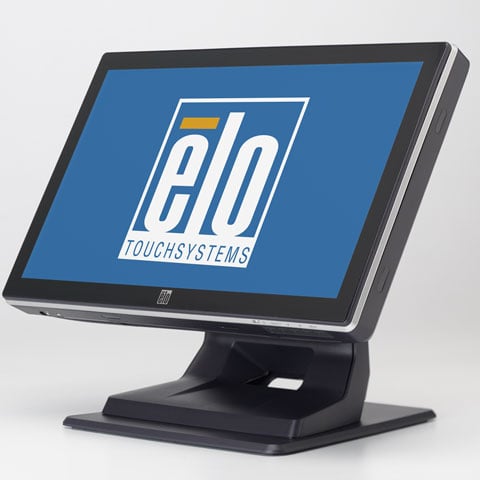

Elo E732007 Touchscreen

Part Number: E732007
Model: 1519L
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Viewable Screen Size
15.6"
Screen Mode
WXGA
Screen Surface
Anti-glare
Response Time
8 ms

Product Description:

  Elo 1519L 15.6" LCD Touchscreen Monitor - 16:9 - 8 ms - 5-wire Resistive - 1366 x 768 - WXGA - Adjustable Display Angle - 16.7 Million Colors - 500:1 - 250 Nit - Speakers - USB - VGA - Dark Gray - WEEE, RoHS, EU RoHS, China RoHS - 3 Year
Explore all Elo 1519L Touchscreens
Add to Quote
Elo E732007 Touchscreen
Elo E732007 Touchscreen
Elo E732007 Touchscreen
Elo E732007 Touchscreen
Elo E732007 Touchscreen
Elo E732007 Touchscreen Elo E732007 Touchscreen Elo E732007 Touchscreen Elo E732007 Touchscreen Elo E732007 Touchscreen
Full specifications (PDF)

Elo 1519L Touchscreen Model Overview

The ELO 1519L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touchmonitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications. The 1519L is available in three industry-leading ELO touch technologies: zero-bezel APR, which senses touch on the display by recognizing the unique pattern of sounds, standard-bezel IntelliTouch surface acoustic wave and zero-bezel AccuTouch 5-wire resistive. Additional applications well-suited to take advantage of the monitor's features include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Elo E732007 Touchscreen Overview

The 1519L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touch monitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications. The 1519L is available in three industry-leading Elo touch technologies: zero-bezel APR, which senses touch on the display by recognizing the unique pattern of sounds, standard-bezel IntelliTouch surface acoustic wave and zero-bezel AccuTouch 5-wire resistive. Additional applications well-suited to take advantage of the monitor's features include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.

Full specifications (PDF)
Technical Information
Viewable Screen Size:
15.6"
Screen Mode:
WXGA
Screen Surface:
Anti-glare
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
90°
Vertical Viewing Angle:
65°
Adjustable Display Angle:
Yes
Adjustable Display Height:
No
Adjustable Display Pivot:
Yes
Display Orientation:
Landscape/Portrait
Mount Type:
Wall Mountable
Features:
Security Lock
Horizontal Frequency:
83 kHz
Video
Maximum Resolution:
1366 x 768
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Headphone:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
18.40 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Product Color:
Dark Gray
Height with Stand:
8.40"
Width with Stand:
15.10"
Depth with Stand:
10.90"
Weight (Approximate):
7.50 lb
Weight with Stand (Approximate):
11.30 lb
Miscellaneous
Certifications & Standards:
  • UL
  • cUL
  • NOM
  • CB
  • S-mark
  • CCC
  • VCCI
  • KC
  • KKC
  • BSMI
  • China RoHS
  • IMERC
  • CE
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
  • EU RoHS
  • China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 7411493220968
EAN: 7411493220968
UNSPSC: 43211903
