Elo E103208 Touchscreen

Part Number: E103208
Model: 1537L
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Screen Surface
Anti-glare

Product Description:

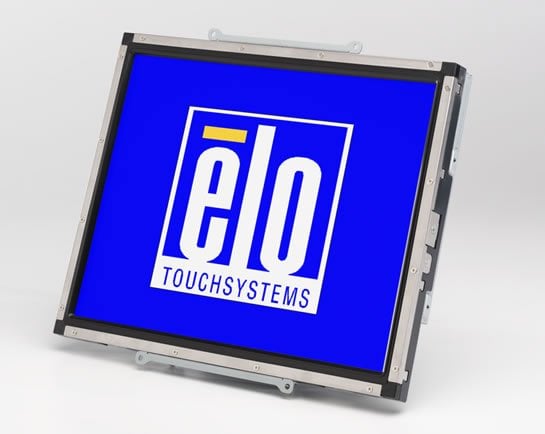

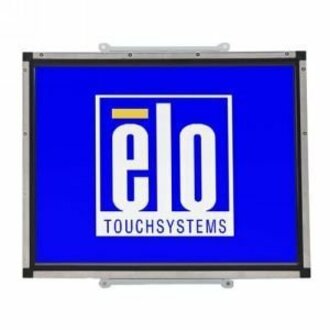

  Elo 1000 Series 1537L Touch Screen Monitor - 15" - Capacitive - 1024 x 768 - 5:4 - Black
Explore all Elo 1537L Touchscreens
Add to Quote
Elo E103208 Touchscreen
Elo E103208 Touchscreen
Elo E103208 Touchscreen Elo E103208 Touchscreen
Full specifications (PDF)

Elo 1537L Touchscreen Model Overview

The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration. It features a high qualitly panel along with a unique, injection-molded minibezel with virtually invisible watertight seal and choice of touch technology. Future generation panels can be phased-in without external changes. Multilingual on-screen display.
Elo E103208 Touchscreen Overview

Elo's chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. It features a high quality panel along with a unique, injection-molded mini bezel with virtually invisible watertight seal and choice of touch technology.

Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Screen Surface:
Anti-glare
Response Time:
14.50 ms
Aspect Ratio:
5:4
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.2 Million Colors
Contrast Ratio:
500:1
Brightness:
200 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Capacitive
Interfaces/Ports
USB:
Yes
Physical Characteristics
Product Color:
Black
Height:
10.4"
Width:
13.2"
Depth:
1.6"
Weight (Approximate):
6.60 lb
Miscellaneous
Platform Supported:
  • PC
  • Mac
  • Sun
Item Numbers
GTIN: 7411493013812
EAN: 7411493013812
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E103208 Touchscreen is also known as ELO-E103208 or E103208.
