DITEK DTK-RM16NM Surge Protector

Part Number: DTK-RM16NM
Model: DTK-RM16NM
$561.72

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Dataline Protection
Coaxial Cable Line
Input Voltage
1 V
Output Voltage
1 V DC
Maximum Surge Current
291 A

Product Description:

  DITEK DTK-RM16NM Surge Suppressor - 1 V Input - 1 V Output - Coaxial Cable Line

DITEK DTK-RM16NM Power Device Model Overview

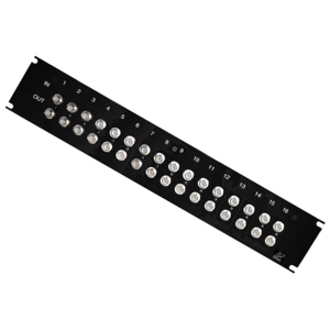

16 position, non-modular CCTV protector with BNC inputs and outputs. It is suitable for use with all systems including Coaxitron systems.
DITEK DTK-RM16NM Surge Protector Overview

DITEK's RM16NM rack mount surge protectors for CCTV video feeds are used by top security professionals. They are effective at preventing damage to DVRs and head-end equipment causing by voltage surges from pole-mounted or external cameras' video feeds. Tight clamping voltage ensures top protection, enabling continuous operation of critical CCTV equipment.

Technical Information
Dataline Protection:
Coaxial Cable Line
Power Description
Input Voltage:
1 V
Output Voltage:
1 V DC
Maximum Surge Current:
291 A
Physical Characteristics
Height:
3.5"
Width:
19"
Depth:
1.3"
Weight (Approximate):
1.90 lb
Miscellaneous
Additional Information:
  • Reduces DVR downtime and failure from voltage surges
  • Protects 16 camera feeds
  • Standing Wave Ratio (SWR): 1.2:1
  • Insertion Loss: < 0.3dB per line
  • Impedance: 75 Ohms
  • Voltage Clamping: 2.8VDC
  • Housing: Aluminum
Compatibility:

Coaxitron pan-tilt-zoom Camera

TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
10 Year
Item Numbers
GTIN: 0782980501875
UPC: 782980501875
EAN: 0782980501875
UNSPSC: 39121610
