Digi AccelePort Xr 920 Data Networking

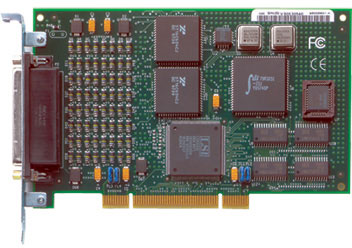

Digi AccelePort Xr 920  -  One of the industry's best-known multi-port serial I/O cards, Digi's AccelePort Xr 920 is designed for use in multi-user and remote Access Service (RAS) applications. It supports RS-232 serial communications, multi-strike surge protection on each and every pin, 32-bit IDT RISC processor, up to 921.6 Kbps throughput, software configurable bus port and a wide range of accessories, such as fan-out cables and external I/O connector boxes. CPU utilization is optimized by efficiently handling serial I/O communication interrupts, character processing and data transfers. This is an ideal solution in retail/ point-of-sale, hospitality (restaurants/hotels), data collection and remote access applications.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Add to Quote
Please Call
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

Digi AccelePort Xr 920 Data Networking Options

  • Digi 70001362 Data Networking

    Digi 70001362 Data Networking

    Universal PCI card (3.3V & 5V), 8 RS-232 serial ports, DB-25M Cable, Up to 921.6 Kbps throughput, 16C554 Quad UARTS, Single DB-78F connector on board, DB-25 fan-out cables (DTE or DCE; male or female), DB-9 fan-out cables (DTE; male or female), DB-25 connector box with 4-foot connector cable (DTE or DCE), RJ-45 connector attachment, 20 kV surge protection on all pins, Slave design

Digi AccelePort Xr 920 Data Networking Model Overview

The Digi AccelePort® Xr 920 Multiport Serial Card is your solution for robust connectivity across various applications, from retail point-of-sale systems to industrial control environments. Designed with flexibility in mind, this card supports two, four, or eight serial ports and accommodates data speeds of up to 921.6 Kbps. Each pin is reinforced with heavy-duty surge protection, ensuring reliability for mission-critical operations. The RISC-based processor optimizes system performance by reducing CPU workload, making it ideal for multi-user setups and Remote Access Services.

Key features:
  • Two, or eight serial ports, supporting data speeds up to 921.6 Kbps
  • EIA-232 or EIA-422 connections for diverse connectivity options
  • RISC-based processor enhances system throughput
  • PCI 2.2 and 2.3 compatible for easy integration
  • Full modem control and hardware/software flow control for data integrity
  • Heavy-duty surge protection on all pins
  • Universal PCI bus slot supports 3.3V and 5V


Specifications:
  • Models: Two-port; Four-port; Eight-port
  • Operating system support: Windows, Linux, Solaris, HP-UX, and more
  • Power requirements:
    • AccelePort 2r 920: +5 V +/-5% 350 mA, +12 V +/-5% 30 mA, -12 V +/-5% 50 mA
    • AccelePort 4r 920: +5 V +/-5% 955 mA, +12 V +/-5% 40 mA, -12 V +/-5% 40 mA
    • AccelePort 8r 920: +5 V +/-5% 960 mA, +12 V +/-5% 80 mA, -12 V +/-5% 80 mA
  • Environmental: Operates at 10°C to 55°C, humidity 5% to 90%
  • Dimensions:
    • Two-port PCI: 9.0 in (L) x 4.2 in (W) x 0.5 in (H)
    • Four & Eight-port PCI: 6.875 in (L) x 4.2 in (W) x 0.5 in (H)
  • Regulatory approvals: FCC Part 15, ICES 003, VCCI Class B
