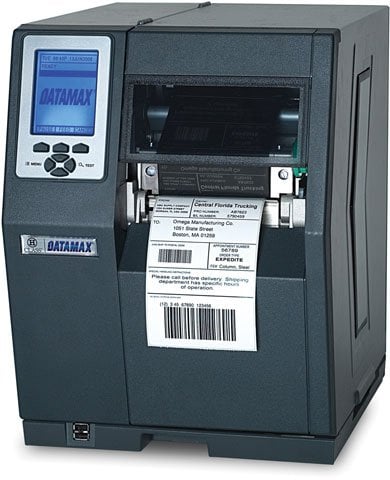

Datamax-O'Neil H-4310X – Barcode Label Printer – 300 dpi, 305 dpi – Rewinder

Part Number: C33-00-48400004
Model: H-4310X

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Interface Options
Ethernet, Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi
Printer Options
Rewinder

Product Description:

  4.1 inch Print Width, Direct Thermal/Thermal Transfer, 300 dpi, 10 ips Print Speed, Serial/Parallel/USB/Ethernet Interfaces, 16MB DRAM/8MB Flash, Internal Rewinder

Honeywell H-4310X Barcode Label Printer Model Overview

The Datamax-O'Neil H-Class: H-4310X Industrial Printer is the most advanced and feature-rich printer solution designed for today's dynamic enterprise applications. The H-4310X Industrial Printer provides throughput that is up to twice as fast as other printers in its class, and its gear-driven design provides rugged and reliable performance for 24x7 mission-critical service. Modular construction increases up-time for the highest levels of user productivity, and helps provide the lowest cost of ownership. The H-4310X Industrial Printer offers the industry's largest graphical display that provides an easy-to-read view for quick navigation and printer notifications, and is a tall model of the H-4310 Industrial Printer. This tall model is capable of rewinding full roll of labels with the optional internal rewinder installed. In addition, the Datamax-O'Neil H-4310X Industrial Printer is designed with options to address evolving RFID applications.
Datamax-O'Neil C33-00-48400004 Barcode Label Printer Overview

the H-4310X Label Printer is the most flexible labeling solution offered in the industry today. Designed for high-volume, missioncritical, and specialty labeling applications, the H-4310X Label Printer features a patented cast metal modular construction that combines rugged strength with easy expandability to allow the printer to grow as your labeling needs grow.

Technical Information
Recommended Use:
Label Print
Maximum Mono Print Speed:
10 in/s
Maximum Print Width:
4.16"
Rewinder:
Yes
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Flash Memory:
8 MB
Interfaces/Ports
Infrared:
Yes
Media Types & Handling
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
8"
Maximum Label Width:
4.65"
Maximum Label Length:
99"
Label Core Size:
3"
Ribbon Core Size:
1"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
16.5"
Width:
12.6"
Depth:
19.3"
Miscellaneous
Package Contents:
  • H-4310X Label Printer
  • Accessories CD
Certifications & Standards:

Safety Standards:

  • UL
  • Canadian
  • European

Emission Standards:

  • FCC Class A
  • CE
Item Numbers
UNSPSC: 43212108
