Datalogic QS65-1060000 Barcode Scanner

The Datalogic QS65-1060000 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic QS6500 - Datalogic QuickScan QS6500 Bar Code Reader - Wired - Linear
  • Scan barcodes with a staggering speed of 450 scan/s
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • A trustworthy linear image scanning provides solid state barcode reading
  • LED aimer is a perfect choice for patient-facing applications
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More

Need a different version? See all Datalogic QS6500 Barcode Scanners

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Datalogic QS65-1060000 Barcode Scanner
Datalogic QS65-1060000 Barcode Scanner Datalogic QS65-1060000 Barcode Scanner Datalogic QS65-1060000 Barcode Scanner Datalogic QS65-1060000 Barcode Scanner
Datalogic QS65-1060000 Barcode Scanner
Datalogic QS65-1060000 Barcode Scanner
Datalogic QS65-1060000 Barcode Scanner
Datalogic QS65-1060000 Barcode Scanner
Full specifications (PDF)

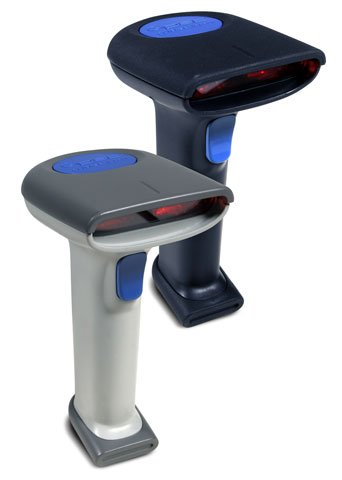

Datalogic QS6500 Barcode Scanner Model Overview
The Datalogic QS6500 is Datalogic's newest general purpose handheld scanner, featuring the latest in linear imaging technology. For retail, office, healthcare and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price, the QS6500 offers the best price/performance in the market. The Datalogic QS6500 provides many benefits including aggressive scanning performance, an ergonomic enclosure, excellent depth-of-field, snappy 1D and PDF barcode reading, bright targeting beam, and superior durability and reliability.
Datalogic QS65-1060000 Barcode Scanner Overview

The QuickScan QS6500 is PSC's newest general purpose handheld scanner, featuring the latest in linear imaging technology.For retail, office, healthcare and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price, the QuickScan QS6500 offers the best price/performance in the market.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • RSS-14
  • RSS-14 Expanded
  • RSS-14 Limited
  • RSS-14 Stacked
  • ISBN / Bookland EAN
  • Code 39 Full ASCII
  • Pharmacode 39
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Code 16K
  • Code 11
  • Codabar (NW7)
  • UK Plessey
  • MSI/PLESSEY
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
450 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2" - 5"@5mil - Linear
  • 1" - 7"@7.5mil
  • 0" - 12"@10mil
  • 0" - 15"@13mil - 100% UPC
  • 24"@20mil
  • 40"@40mil
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Gray
Height:
6"
Width:
2.9"
Depth:
3.9"
Weight (Approximate):
6.30 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 46XX
  • Keyboard Wedge
  • USB

USB Cable separate

Certifications & Standards:

Electrical:

  • EN60950
  • CSA60950
  • UL60950

Emissions:

  • FCC-A
  • EN 55022-B
  • BSMI 13438
  • VCCI-B
  • ICES-003

Laser classification:

  • IEC 60825 Class 1 LED

Restriction of Hazardous Substances:

  • RoHS Compliant
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic QS65-1060000 Barcode Scanner is also known as DTL-QS651060000 or QS651060000.
