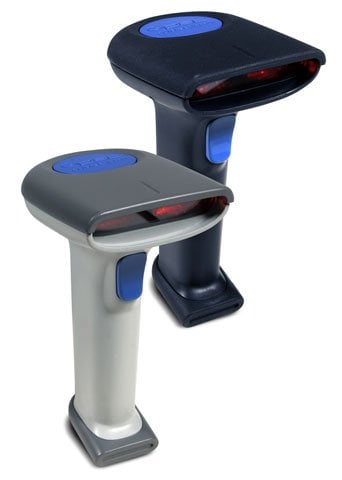

Datalogic QS65-1040032-401 Barcode Scanner

Datalogic QS65-1040032-401R Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic QS65-1040032-401R Barcode Scanner.
Datalogic QS6500 - Datalogic QuickScan QS6500 Bar Code Reader - Wired - Linear
  • Scan barcodes with a staggering speed of 450 scan/s
  • Allows productive and precise reading of 1D barcodes
  • A trustworthy linear image scanning provides solid state barcode reading
  • LED aimer is a perfect choice for patient-facing applications
  • Perfect for applications that require direct association with a workstation or a notebook
Read More

Need a different version? See all Datalogic QS6500 Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Datalogic QS65-1040032-401 Barcode Scanner
Datalogic QS65-1040032-401 Barcode Scanner Datalogic QS65-1040032-401 Barcode Scanner Datalogic QS65-1040032-401 Barcode Scanner Datalogic QS65-1040032-401 Barcode Scanner
Datalogic QS65-1040032-401 Barcode Scanner
Datalogic QS65-1040032-401 Barcode Scanner
Datalogic QS65-1040032-401 Barcode Scanner
Datalogic QS65-1040032-401 Barcode Scanner
Full specifications (PDF)
Datalogic QS6500 Barcode Scanner Model Overview
The Datalogic QS6500 is Datalogic's newest general purpose handheld scanner, featuring the latest in linear imaging technology. For retail, office, healthcare and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price, the QS6500 offers the best price/performance in the market. The Datalogic QS6500 provides many benefits including aggressive scanning performance, an ergonomic enclosure, excellent depth-of-field, snappy 1D and PDF barcode reading, bright targeting beam, and superior durability and reliability.
Datalogic QS65-1040032-401 Barcode Scanner Overview

The QuickScan QS6500 is PSC's newest general purpose handheld scanner, featuring the latest in linear imaging technology. For retail, office, healthcare and light industrial customers looking for a handheld scanner that has premium performance and durability at an affordable price, the QuickScan QS6500 offers the best price/performance in the market.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • RSS-14 Stacked
  • RSS-14 Limited
  • RSS-14 Expanded
  • ISBN / Bookland EAN
  • Code 39 Full ASCII
  • Pharmacode 39
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • IATA
  • Code 16K
  • Code 11
  • Codabar (NW7)
  • UK Plessey
  • MSI/PLESSEY
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
450 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2" - 5"@5mil
  • 1" - 7"@7.5mil
  • 0" - 12"@10mil
  • 0" - 15"@13mil - 100% UPC
  • 24"@20mil
  • 40"@40mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Gray
Height:
6"
Width:
2.9"
Depth:
3.9"
Weight (Approximate):
6.40 oz
Miscellaneous
Package Contents:
  • QuickScan 6500 Bar Code Reader
  • 12ft USB Series A POT Cable (8-0481-08)
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • IBM 46XX
  • USB

USB Cable separate

Certifications & Standards:

Water & Dust:

  • IEC529 Rating IP52DW

Electrical:

  • EN60950
  • CSA60950
  • UL60950

Emissions:

  • FCC-A
  • EN 55022-B
  • BSMI 13438
  • AS/NZS 3548
  • VCCI-B
  • ICES-003

Laser Classification:

  • IEC 60825 Class 1 LED
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic QS65-1040032-401 Barcode Scanner is also known as PSC-QS651040032401 or QS651040032401.
