Datalogic PSRF-1000 Barcode Scanner

Datalogic PM8300-910 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic PM8300-910 Barcode Scanner.
Datalogic PowerScan RF - Datalogic PowerScan SR RF Bar Code Reader - Wireless Connectivity - 37 scan/s - 150.92 ft Scan Distance - Laser - Multi-interface
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Scan barcodes with a staggering speed of 37 scan/s
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

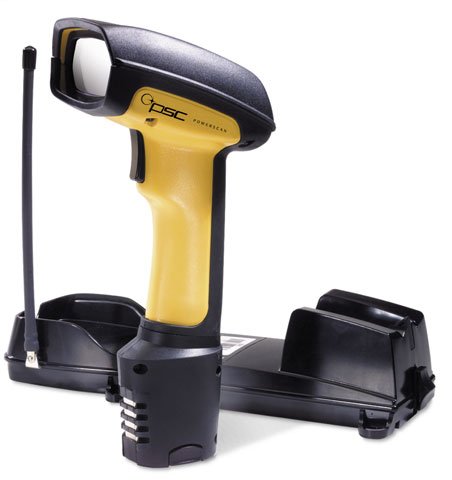

Datalogic PowerScan RF Barcode Scanner Model Overview
With the PowerScan RF wireless scanner, you now have the freedom to go where the work is, not the other way around. Now you only have to take the 27.5 oz. (0.8 kg) PowerScan RF scanner to the 500 lb. (227 kg) pallet; not the pallet to the scanner. Utilizing the latest in Radio Frequency (RF) technology, the PowerScan RF has a range of up to 150.0' (45.7 m). This allows you the freedom to scan pallets at the other end of the loading dock or boxes at the end of a warehouse aisle up to 150.0 (45.7 m) from your fork truck. Its unique acknowledgment tone lets you know that your data transmission was successful. With multi-point capability the PowerScan RF allows you to assign multiple scanners to a single base station thereby increasing throughput and reducing the cost of additional base stations and host terminals. Each unit ships with one user's guide.

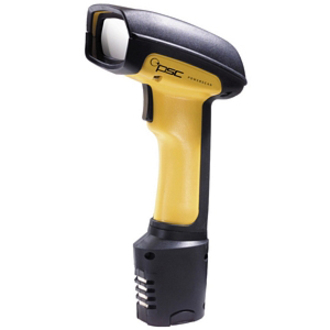

Datalogic PSRF-1000 Barcode Scanner Overview

With the PSC PowerScan Standard Range RF Industrial Bar Code Reader, you now have the freedom to go where the work is, not the other wayaround. Now you only have to take the 360 g PowerScan RF scanner to the 227 kg pallet; not the pallet to the scanner. Utilizing the latest in Radio Frequency (RF) technology, the PowerScan RF has a range of up to 150' / 46 m. This allows you the freedom to scan pallets at the other end of the loading dock or boxes at the end of a warehouse aisle up to 46 m from your host terminal. Its unique acknowledgment tone lets you know that your data transmission was successful. With multi-point capability, the PowerScan RF allows you to assign multiple scanners to a single base station, thereby increasing throughput and reducing the cost of additional base stations and host terminals.

Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
  • UPC
  • EAN
  • Code 39
  • Codabar
  • Pharmacode 39
  • Code 39 Full ASCII
  • Code 128
  • EAN-128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • MSI/PLESSEY
  • JAN
Light Source:
Laser
Scan Rate:
37 scan/s
Depth of Field:
  • 3" - 6"@5mil - Code 39
  • 2" - 10"@7.5mil - Code 39
  • 1" - 16"@10mil - Code 39
  • 0.5" - 27"@15mil - Code 39
  • 0.5" - 36"@20mil - Code 39
  • 5" - 48"@40mil - Code 39
  • 6" - 60"@55mil - Code 39
Scanning Distance:
150.92 ft
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
110 V AC
Physical Characteristics
Form Factor:
Handheld
Weight (Approximate):
12.70 oz
Miscellaneous
Package Contents:
  • PowerScan Standard Range RF Industrial Bar Code Reader
  • Battery
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • Wand Emulation

USB Cable separate

Certifications & Standards:

Electrical:

  • TUV
  • UL
  • cUL

Emissions:

  • FCC-A
  • EN 55022-B
  • BCIQ CNS13438
  • AS/NZS 3548

Laser classification:

  • CDRH Class 2
  • IEC 60825 Class 2

Radio:

  • ETSI-ETS-300 220
  • FCC Part 15.249
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PSRF-1000 Barcode Scanner is also known as PSC-PSRF1000 or PSRF1000.
