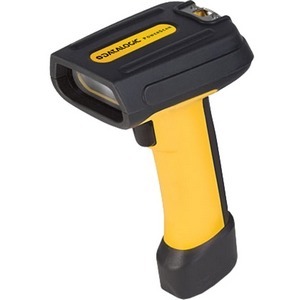

Datalogic PS72-1100-1100-106 Barcode Scanner

The Datalogic PS72-1100-1100-106 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic PowerScan 7000 - PowerScan 7000 SRI Industrial Strength Imaging Scanner (2D, RS232, High Density, US Power Supply and Cable) - Color: Yellow/Black
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Incredible and responsive 2D scanning even on curved or translucent surfaces
  • Laser-free design provides high-performance scanning without the risk of eye injury
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

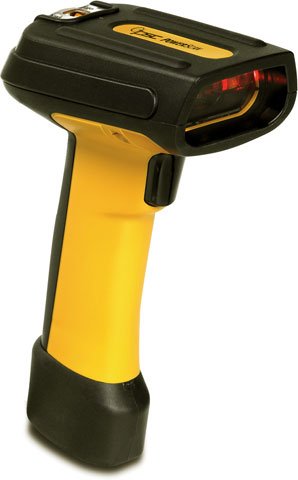

Datalogic PowerScan 7000 Barcode Scanner Model Overview
The PowerScan 7000 Standard Range Linear Imaging Scanner (SRI) is the most rugged, durable and reliable industrial handheld scanner on the market. It has a protective overmold to protect it from drops and to seal it from dust and water and can operate between -30 degrees C and 50 degrees C. The PowerScan 7000 can scan up to 500 scans per second and is available in multiple connections, including USB, RS-232, Keyboard Wedge and more. The PowerScan 7000 is perfect for package handling and tracking, warehouse applications, shipping and receiving, manufacturing shop floor and other demanding applications.
Datalogic PS72-1100-1100-106 Barcode Scanner Overview

PSC is pleased to announce the new 2D imaging scanner in the PowerScan 7000 family of industrial handheld scanners. These new 2D scanners carry on the strong PowerScan brand, while raising the bar for performance and ruggedness. The PowerScan 7000 2D employs the latest solid state area imaging technology to offer industry leading 2D imaging and read performance in the most durable handheld scanner on the market.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Code 11
  • Code 128
  • UPC/EAN/JAN
  • RSS
  • Code 39
  • Codabar
  • Interleaved 2 of 5
  • Code 93
  • Code 2 of 5
  • PDF 417
  • MaxiCode
  • Aztec Mesas
  • Aztec
  • Micro PDF
  • DataMatrix
  • EAN-UCC Composite
  • Code 49
  • QR Code
  • Postnet
  • Canadian Post
  • British Post
  • China Postal Code
  • Japanese Post
  • Kix
  • Planet Code
  • OCR-A
  • OCR-B
Light Source:
LED
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 1.5" - 5.5"@7.5mil - Linear
  • 1.3" - 7.9"@13mil - UPC
  • 1.8" - 5"@6.6mil - PDF417
  • 1.3" - 5"@15mil - Data Matrix
  • 1" - 9"@35mil - Maxi Code
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Height:
7.5"
Width:
3"
Depth:
4.5"
Weight (Approximate):
9.60 oz
Miscellaneous
Package Contents:
  • PowerScan 7000 Bar Code Reader
  • Power Supply
  • 12ft 9Din Serial E/P Cable
Additional Information:

Supported Interfaces:

  • Serial
  • USB

USB Cable separate

Certifications & Standards:
  • Vibration: Meets MIL-STD-810E
  • Water & Dust: IEC529 Rating IP54DW

Electrical:

  • TÜV
  • UL
  • cUL

Emissions:

  • FCC
  • EN 55022-B
  • CNS13438
  • AS/NZS 3548
  • VCCI
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 4054318775552
EAN: 4054318775552
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PS72-1100-1100-106 Barcode Scanner is also known as PSC-PS7211001100106 or PS7211001100106.
