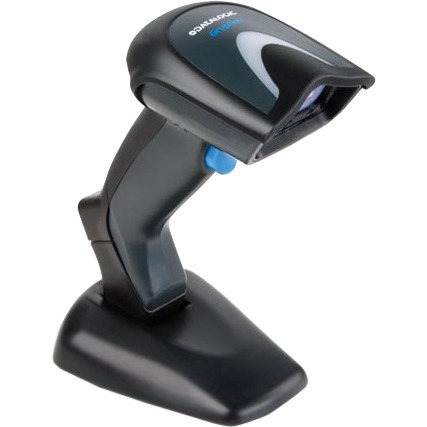

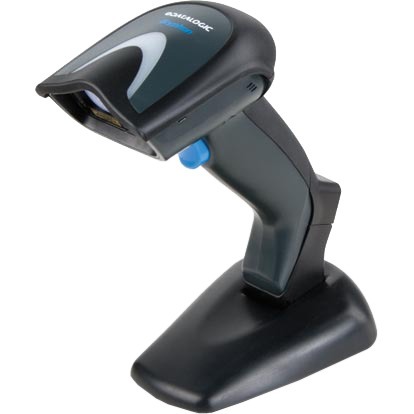

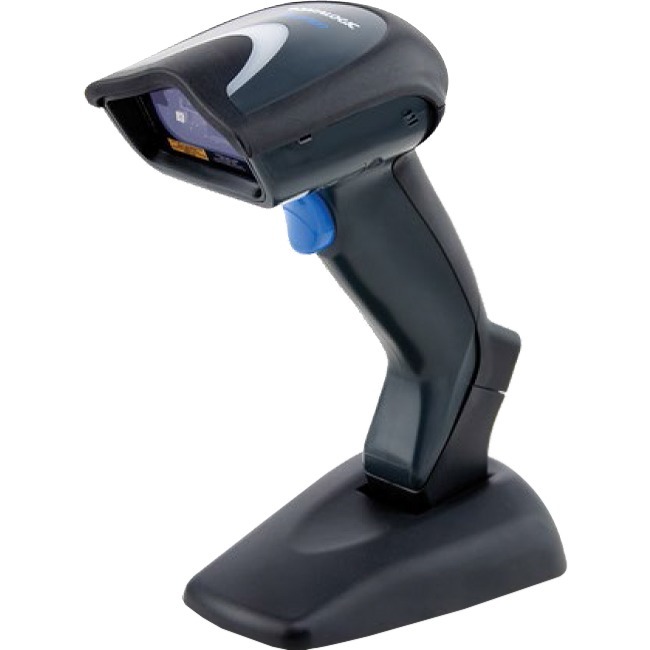

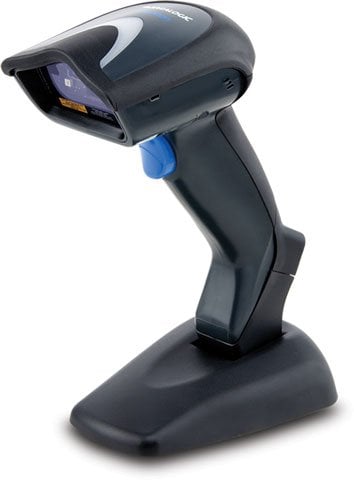

Datalogic GD4430-BKK1B Barcode Scanner

Datalogic GD4520-BKK1B Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic GD4520-BKK1B Barcode Scanner.
Datalogic Gryphon I GD4400-B 2D - Datalogic Gryphon GD4430 Handheld Barcode Scanner Kit - Cable Connectivity - 1D, 2D - Laser - Imager - Omni-directional - Serial, USB, Keyboard Wedge - Black
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Laser scan engine guarantees rapid error free data entry
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Datalogic Gryphon I GD4400 2D Barcode Scanner Model Overview
The Datalogic Gryphon I GD4400 2D imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices. As a corded device, the Gryphon I GD4400 2D imager is available in two different interface models: a multi-standard interface for connection to the host via USB (COM and Wedge Emulation), RS-232 or Wedge Emulation or an IBM 46XX interface model, including USB and RS-232 interfaces.
Datalogic GD4430-BKK1B Barcode Scanner Overview

The Gryphon GD4400 imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices.

The Gryphon GD4400 2D omnidirectional reader eliminates the need for separate equipment with signature capture and document scanning capabilities. Its enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

2D Codes:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.9" - 3.6"@3mil - Code 39
  • 0.3" - 4.5"@5mil - Code 39
  • 1.1" - 2.4"@5mil - Data Matrix
  • 0.4" - 6.8"@13mil - EAN-13
  • 0.7" - 2.7"@4mil - PDF417
  • 0" - 5.6"@10mil - PDF417
  • 0.8" - 1.7"@6.7mil - QR Code
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
  • Serial
  • USB
  • Keyboard Wedge
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
6.88 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0021112876253, 0682017490892, 5711045247910
UPC: 021112876253, 682017490892
EAN: 0021112876253, 0682017490892, 5711045247910
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic GD4430-BKK1B Barcode Scanner is also known as DTL-GD4430-BKK1B
