Datalogic GD4130-BKK1 Barcode Scanner

Datalogic GD4132-BKK1 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic GD4132-BKK1 Barcode Scanner.

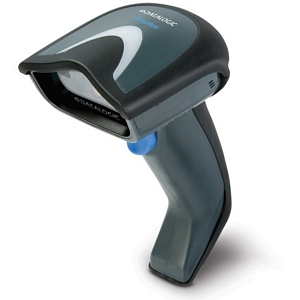

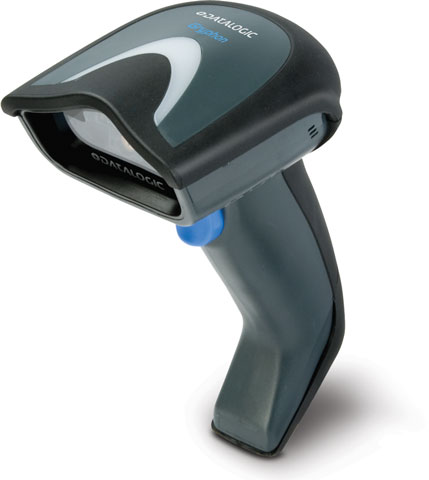

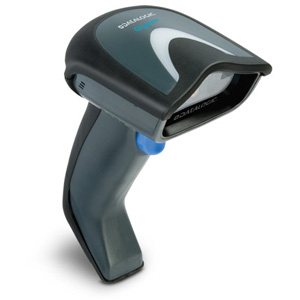

Datalogic Gryphon I GD4100 - Datalogic Gryphon GD4130 Bar Code Reader - Wired - CCD
  • Offers custom fitted for medium to high volume point-of-sale applications that require elite performance in a single plane horizontal form factor
  • Scan barcodes with a staggering speed of 325 scan/s
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Charge Couple Device imager has no moving parts, hence is less susceptible to damage or failure
  • LED aimer is a perfect choice for patient-facing applications
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

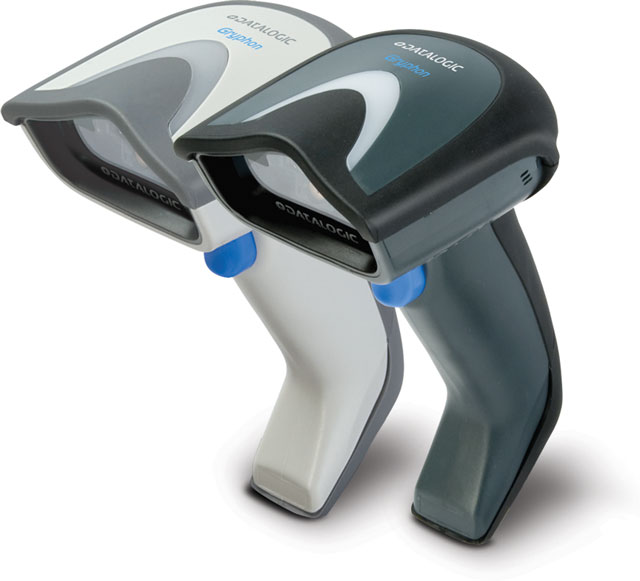

Datalogic Gryphon I GD4100 Barcode Scanner Model Overview
The Datalogic Gryphon I GD4100 readers' stylish enclosures, reduced weight and physical dimensions together with a 1.8 m / 5.9 ft drop resistance and IP42 sealing rating produce a reliable, ergonomic solution with the combined excellence of ease of use and advanced reading capabilities. The Gryphon I GD4100 reader offers a choice of two sets of multi-interface options: USB, Keyboard Wedge, RS-232 and Wand Emulation, or for use in point-of-sale (POS) environments, IBM 46XX, USB and RS-232. Both interface sets offer configuration flexibility and are easily adapted for migration or future changes to the host system. Remote Host Download lowers the service costs and improves operations allowing for hassle-free field upgrades while the desktop Datalogic Aladdin configuration program provides user-friendly features that simplify the start-up procedure, especially for inexperienced users.
Datalogic GD4130-BKK1 Barcode Scanner Overview

With rich feature sets and extensive model options, the Gryphon product series from Datalogic Scanning represents the premium level of data collection equipment for general purpose applications. The Gryphon GD4130 Bar Code Reader a linear imaging readers provide advanced reading performance and decoding for a wide variety of applications.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Postal Codes:

  • China Post

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Light Source:
LED
Image Sensor Type:
CCD
Scan Rate:
325 scan/s
Maximum Scan Resolution:
3 mil
Depth of Field:
  • 6.0cm - 18cm@5mil
  • 3.5cm - [email protected]
  • 2.0cm - 45cm@10mil
  • 3.0cm - 60cm@13mil
  • 3.0cm - 80cm@20mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Weight (Approximate):
6 oz
Miscellaneous
Additional Information:

Supported Interface:

USB

USB Cable separate

Environmentally Friendly:
Yes
Item Numbers
GTIN: 0001218022013, 0853585490250, 5051964550471, 5711045213342
UPC: 001218022013, 008960335262, 853585490250, 853585507606
EAN: 0001218022013, 0853585490250, 5051964550471, 5711045213342
UNSPSC: 43211701
