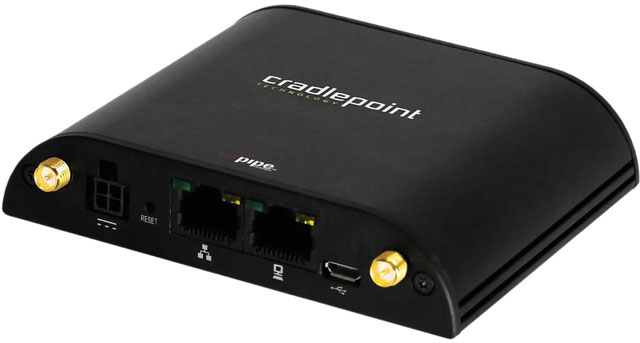

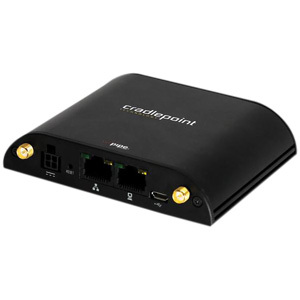

CradlePoint IBR650E-VZ Wireless Router

The CradlePoint IBR650E-VZ Wireless Router has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
CradlePoint - CradlePoint COR IBR650E Wireless Router - 3G - 2 x Antenna - 1 x Network Port - 1 x Broadband Port - USB - Fast Ethernet - Wall Mountable
  • Access USB-compatible peripherals accross the wireless network via built-in USB port
  • Link your router traffic to your wired network with the Fast Ethernet port
  • Tuck the router out of the way with its wall mounting feature
Read More

Need a different version? See all CradlePoint Parts Accessories

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
CradlePoint IBR650E-VZ Wireless Router
CradlePoint IBR650E-VZ Wireless Router CradlePoint IBR650E-VZ Wireless Router CradlePoint IBR650E-VZ Wireless Router CradlePoint IBR650E-VZ Wireless Router
CradlePoint IBR650E-VZ Wireless Router
CradlePoint IBR650E-VZ Wireless Router
CradlePoint IBR650E-VZ Wireless Router
CradlePoint IBR650E-VZ Wireless Router
CradlePoint Parts Accessory Model Overview
Products and parts from CradlePoint.
CradlePoint IBR650E-VZ Wireless Router Overview

The CradlePoint COR Series is built for your M2M network. It's an affordable highly-featured, compact router designed for critical business and enterprise applications that require 24x7 connectivity.

With its compact size, sleek metal case, mounting bracket, external Mobile Broadband and WiFi antennas (optional), COR is ideal for use in high-availability portable or fixed applications like ATMs, kiosks, surveillance, vehicles, etc.

Get instant network connectivity with a CradlePoint COR, which features a built-in modem - just activate and go. It also supports traditional wired data networks like DSL or Cable for maximum network flexibility.

Wireless Specifications
Broadband Transmission Technology:
  • Cellular
  • Ethernet
ISM Band:
No
UNII Band:
No
Cellular Generation:
3G
Cellular Network Supported:
CDMA2000 1X
Cellular Data Connectivity Technology:
EVDO
Total Number of Antennas:
2
Antenna Gain:
2 dBi
Antenna Type:
Yagi Antenna
Antenna Connector:
SMA Connector
Features:
  • Quality of Service (QoS)
  • MIMO Technology
Interfaces/Ports
Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE (RJ-45) Port:
No
Management Port:
No
Number of Broadband (RJ-45) Ports:
1
Network & Communication
Ethernet Technology:
Fast Ethernet
Management & Protocols
Management:
  • Web-Based Management
  • SNMP
  • WiPipe Central Management
  • VLAN
  • DHCP
Security Features:
  • VPN
  • IPSec
  • PPTP
  • URL Filtering
  • Traffic Filtering
  • Port Forwarding
  • GRE Tunneling
  • SSH
  • NAT
  • L2TP
  • Port Blocking
  • Service Filtering
  • RADIUS
  • MAC Address Filtering
  • Content Filtering
  • Website Filtering
  • PPPoE
  • SPI Firewall
  • DMZ
  • MD5
  • SHA128
  • SHA256
  • SHA384
  • SHA512
  • AES
  • 3DES
  • DES
  • Intrusion Detection
Power Description
Input Voltage:
12 V DC
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
Wall Mountable
Height:
0.9"
Width:
4"
Depth:
3.3"
Weight (Approximate):
7.05 oz
Miscellaneous
System Requirements:

Web Browsers:

  • Firefox v2.0
  • Internet Explorer v7.0
  • Google Chrome
  • Safari v1.0

Operating Systems:

  • Windows 2000
  • Windows XP
  • Windows 7
  • Mac OS X
  • Linux
Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.1Q
  • RSS-102
  • PTCRB
  • RSS-129
  • RSS-132e
  • RSS-133 r1
  • FCC
  • IC
  • CE
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Item Numbers
GTIN: 0804879340010
UPC: 804879340010
EAN: 0804879340010
UNSPSC: 43222609
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The CradlePoint IBR650E-VZ Wireless Router is also known as MOB-IBR650E-VZ or IBR650EVZ.
