Application/Usage:
Optical Network
Cisco DS-X9232-256K9= Products
Part Number:
DS-X9232-256K9=
Model:
Parts
Cisco Parts Accessory Model Overview
Products and parts from Cisco.

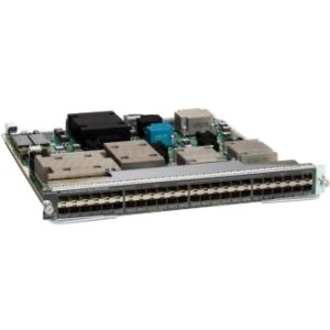

Cisco DS-X9232-256K9= Products Overview
Cisco® MDS 9000 Family 8-Gbps Advanced Fibre Channel Switching Modules deliver high performance and innovative features to enable convergence, scalability, and intelligence in large, virtualized data centers. With up to 528 line-rate 8-Gbps Fibre Channel ports per chassis, industry-first technologies such as Cisco FlexSpeed and Arbitrated Local Switching, intelligent fabric services such as integrated VSANs, Inter-VSAN Routing (IVR), and PortChannels, Cisco MDS 9000 Family 8-Gbps Advanced Fibre Channel Switching Modules enable deployment of large, scalable, and virtualized data centers.
Cisco MDS 9000 Family 8-Gbps Advanced Fibre Channel Switching Modules are available in two configurations:
Cisco MDS 9000 Family 8-Gbps Advanced Fibre Channel Switching Modules are available in two configurations:
- The 32-Port 8-Gbps Advanced Fibre Channel Switching Module delivers line-rate performance across all ports and is ideal for high-end storage subsystems and for Inter-Switch Link (ISL) connectivity.
- The 48-Port 8-Gbps Advanced Fibre Channel Switching Module provides higher port density and is ideal for connection of high-performance virtualized servers. With Arbitrated Local Switching enabled, this module supports 48-ports of line-rate 8-Gbps and is perfect for deploying dense virtual machine clusters with locally mapped storage. For traffic switched across the backplane, this module supports 1.5:1 oversubscription at 8-Gbps Fibre Channel (FC) rate across all ports.
The 8-Gbps Advanced Fibre Channel Switching Modules are compatible with all Cisco MDS 9500 Series Multilayer Directors, providing investment protection and outstanding low total cost of ownership (TCO).
Product Overview
Cisco MDS 9000 32-Port 8-Gbps Advanced Fibre Channel Switching Module
For the most demanding storage networking environments, the 32-port 8-Gbps Advanced Fibre Channel switching module delivers uncompromising performance. The 32-port 8-Gbps Advanced switching module delivers full-duplex aggregate performance of 512 Gbps, making this module well suited for attachment of high-performance 8-Gbps storage subsystems or either 8- or 10-Gbps Inter-Switch Links (ISLs).
Cisco MDS 9000 48-Port 8-Gbps Advanced Fibre Channel Switching Module
For large-scale storage networking environments, the 48-port 8-Gbps Advanced Fibre Channel switching module delivers full-duplex aggregate backplane switching performance of 512 Gbps, making this module ideal for high-performance and virtualized servers. With Arbitrated Local Switching, the 48-port 8-Gbps Advanced module delivers full-duplex aggregate performance of 768 Gbps across locally switched ports on the module. Arbitrated Local Switching on the 48-port 8-Gbps Advanced Fibre Channel module is well suited for deployment of dense virtual machine clusters with locally mapped storage.
Technical Information
Interfaces/Ports
Total Number of Ports:
32
Connector Type:
DB-9
Interfaces/Ports Details:
- 32 x Fiber Channel Network
- RS-232 Management
- DB-9 Management
Media & Performance
Media Type Supported:
Optical Fiber
Ethernet Technology:
8 Gigabit Ethernet
Network Technology:
Fiber Channel
Physical Characteristics
Form Factor:
Hot-swappable
Height:
1.8"
Width:
14.4"
Depth:
16"
Weight (Approximate):
10.50 lb
Miscellaneous
Compatibility:
MDS 9000 Series Multilayer Switches
Warranty
Additional Warranty Information:
- Product does not ship from original manufacturer
- Product may not be eligible for original manufacturer warranty, rebates or programs
- Product condition subject to availability
- Three years direct replacement warranty provided by Ingram Micro
- Product ships from IMSourcing facility within 2-3 days or from stock
- Product May ship in non-standard packaging
- All returns processed directly from IMSourcing
- Where applicable, IM indicates an Ingram Micro certified pre-owned product
Item Numbers
UNSPSC:
43222612
Get help from a Barcoding Expert!
The Cisco DS-X9232-256K9= Products is also known as
CSC-DSX9232256K9=
