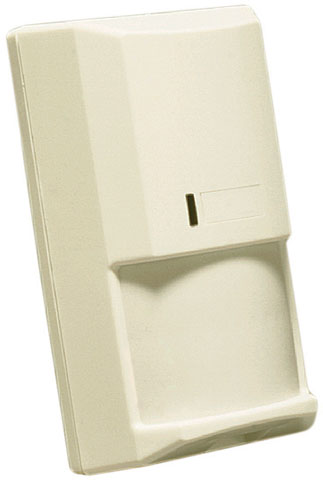

Bosch DS860 Motion Detector

Bosch DS860  -  The Bosch DS860 provides with its passive infrared microwave processing excellent catch performance with freedom from false alarms. The surface or corner mount DS860 TriTech PIR/Microwave Detector provides a microwave frequency of 10.525 GHz. The DS860 features artificial intelligence to provide 5 layers of detection including: supervised microwave and PIR & selectable PIR sensitivity plus draft/insect immunity. The DS860 is installation-friendly with 1 standard coverage pattern and 1 optional, plus a full range of vertical and horizontal pointability.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Add to Quote
Please Call
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

Bosch DS860 Motion Detector Options

Bosch DS860 Motion Detector Model Overview

The DS860 Surface or Corner Mount TriTech PIR/Microwave Detector is engineered for exceptional security performance, combining advanced PIR signal processing with microwave technology. This detector effectively minimizes false alarms in highly variable environments, ensuring reliable monitoring regardless of disturbances such as thermal drafts or bright lights. With a wide coverage area and customizable sensitivity settings, the DS860 is perfect for various applications and can be easily mounted to suit your specific needs.
Key features:
  • Artificial Intelligence integration for enhanced detection accuracy
  • 5 Layers of Detection including a "Look Down Zone" for comprehensive coverage
  • Supervised Microwave and PIR for reliable alerts
  • Selectable PIR Sensitivity tailored to your environment
  • Draft/Insect Immunity thanks to a sealed optical chamber
  • 5 Mounting Options for flexible installation
  • Vertical and Horizontal Pointability for precise adjustment

Specifications:
  • Product ID: DS860
  • Operational Range: Broad: 60 ft. x 60 ft. (18.3 m x 18.3 m); Long range: 100 ft. x 10 ft. (30.5 m x 3 m)
  • Mounting Height: 6 ft. to 8 ft. (1.8 m to 2.4 m)
  • Power Requirements: 9 to 15 VDC, 16 mA @ 12 VDC
  • Operating Temperature: -40°F to +120°F (-40°C to +49°C)
  • Dimensions: 5 in. x 2.8 in. x 2.2 in. (12.7 cm x 7.1 cm x 5.6 cm)
  • Material: High impact ABS plastic enclosure
  • Tamper Output: Normally Closed tamper switch
