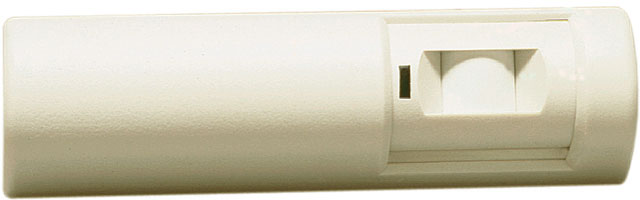

Bosch DS160 Access Control Equipment
Bosch DS160 -
The Bosch DS160 is specifically designed for Request-to-Exit (REX) applications. With features such as built-in timers, door monitor with sounder alert, and pointable coverage, the DS160 has the flexibility to meet the most stringent REX requirements. The exclusive Sequential Logic Input (SLI) provides added security that is not offered in any other REX device.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$120.48
Questions? Get help from
an ID Expert!
an ID Expert!
Bosch DS160 Access Control Equipment Options
-
Bosch DS160 Access Control Equipment
Color: Light Gray$120.48
Bosch DS160 Access Control Equipment Model Overview
The DS160/DS161 High Performance Request-to-Exit Sensors offer advanced security solutions for access control applications. Featuring Sequential Logic Input (SLI) technology, these detectors prevent false alarms by ensuring that only genuine motion activates the system. With an adjustable latch timer, integrated sounder alert, and versatile relay modes, the DS160 and DS161 empower users with customizable security options to meet diverse needs. Designed for easy installation and dependable performance, these sensors are an ideal choice for enhanced facility security.
Key Features
Specifications
Key Features
- Door monitor with sounder alert for timely notifications
- Sequential Logic Input (SLI) for added security
- Adjustable latch time up to 64 seconds
- Selectable fail safe/fail secure modes for operational flexibility
- Internal vertical pointability for tailored coverage
- Adjustable sounder volume up to 85 dB
Specifications
- Alarm Output: 2 Form "C" relay contacts, rated 1A @ 30 VAC or VDC for resistive loads
- Dimensions: 1.80 in. x 6.75 in. x 1.75 in. (4.5 cm x 17.1 cm x 4.4 cm)
- Material: High impact ABS plastic enclosure
- Operating Temperature: -20°F to +120°F (-29°C to +49°C)
- Power Requirements: 12 to 30 VAC, 12 to 30 VDC, 8 mA nominal standby current
- Timer Mode: Programmable resettable or non-resettable mode
- Coverage: 8 ft. x 10 ft. (2.4 m x 3 m), dependent on mounting height
