Bogen SPT30A Public Address Equipment

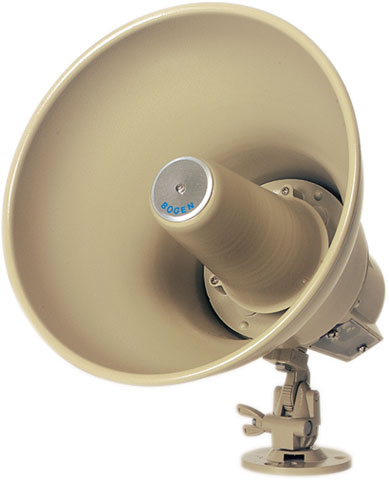

Bogen SPT30A  -  The Bogen SPT30A Horn Loudspeaker horn speaker: compact, highly intelligible, 30 watt reentrant type loudspeakers designed for one-way or two way sound and communication systems. Features a variable impedance selector switch to match the speaker power requirement to 25/75V constant voltage line. Engineered for simple, fast installation with uniquely designed all-purpose mounting brackets, self aligning field replaceable diaphragm and screw terminals. The speaker and mounting bracket are handsomely finished in textured mocha enamel. Its sturdy, weatherproof, all metal construction is ideal for indoor and outdoor use in industrial plants, warehouses, schools, construction sites, transportation terminals and recreational areas.
Full specifications (PDF)

Price Match Guarantee

Found a better price? We'll match it within 60 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Starting at:
$121.78
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

Bogen SPT30A Public Address Equipment
Bogen SPT30A Public Address Equipment

Bogen SPT30A Public Address Equipment Options

Full specifications (PDF)

Bogen SPT30A Public Address Equipment Model Overview

Experience superior sound clarity with the Bogen SPT30A and SP308A Reentrant Horn Loudspeakers. Designed for versatility, these compact loudspeakers are perfect for both indoor and outdoor applications such as industrial plants, schools, and transportation terminals. Their all-metal, weatherproof construction ensures durability in any environment. The SPT30A features a variable impedance selector to easily adapt to 25V or 70V systems, while the SP308A operates with an 8-ohm impedance, both providing a powerful 30 watts of RMS continuous output. Enhancing installation efficiency, the self-aligning, field-replaceable diaphragm and all-purpose mounting bracket save you time and resources without compromising on performance.


Key Features
  • High intelligibility and efficiency for one-way and talkback applications
  • Weatherproof, all-metal construction ensures durability
  • 30 watts power output; available options: 25/70-volt or 8-ohm operation
  • Variable-tap impedance selector on SPT30A model
  • Easy installation with screw terminals and unique bracket design

Specifications
  • Power Rating (RMS): 30 watts continuous, 40 watts equalized
  • Frequency Response: 225Hz to 14kHz
  • Impedance:
    • SPT30A: 25/70 volts
    • SP308A: 8 ohms
  • Sound Pressure Level: 125dB @ four feet on axis with 30 watt input @1000Hz
  • Dispersion: 100°
  • Dimensions: 11" Diameter x 10-1/2"D
  • Shipping Weight: 6 lbs.
  • Finish: Textured mocha enamel
