Bogen SAH Series Public Address Equipment
Bogen SAH Series -

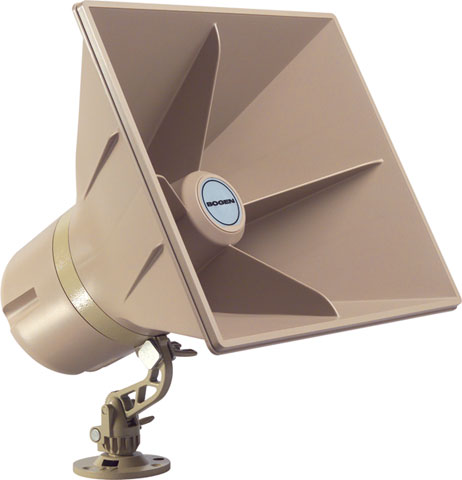

The SAH Series Horn Speaker powered horn loudspeaker employs digital switching amplifier technology resulting in low DC current draw and low heat dissipation. This means fewer power supplies, longer cable runs, and the capacity to work at higher ambient temperatures when compared to conventional analog self amplified horn speakers. The horn loudspeaker can be positioned in any orientation (rotate, tilt, or swivel).The shape of the horn flare provides a controlled dispersion of sound for better intelligibility. The SAH Series Horn Speaker can be used in any environment, indoors or outdoors, without affecting sound quality. Two-Year Warranty standard.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$103.31
Questions? Get help from a
Printer Expert!
Printer Expert!
Bogen SAH Series Public Address Equipment Options
-
Bogen SAH5 Public Address Equipment
Bogen SAH5-24V High-Efficiency, Digital Switching, Amplified Horn, 5W - 5W Amplifier$103.31 -
Bogen SAH15 Public Address Equipment
Bogen SAH15-24V High-Efficiency Digital Switching Amplified Horn 15W - 15W Amplifier$145.66 -
Bogen SAH30 Public Address Equipment
Bogen SAH30-24V High-Efficiency, Digital Switching, Amplified Horn, 30W - 30W Amplifier$181.69
Bogen SAH Series Public Address Equipment Model Overview
The SAH5 and SAH15 powered horn loudspeakers offer cutting-edge digital switching amplifier technology, significantly reducing DC current draw and heat dissipation compared to traditional analog models. These self-amplified horn loudspeakers are perfect for a variety of environments—ideal for both indoor and outdoor use—without compromising on sound quality. Their compelling design allows for versatile positioning, ensuring that you achieve optimal sound dispersion and intelligibility in any setting.
Key features:
Specifications:
Key features:
- Weatherproof, UV-protected plastic housing ensures durability in all conditions.
- Simple cast aluminum swivel mount allows for easy installation in multiple orientations.
- Built-in volume control for effortless adjustment.
- Continuous background music operation, even in higher ambient temperatures.
- Enhanced sound quality with a frequency response of 275 Hz - 14 kHz.
Specifications:
- Models: SAH5, SAH15
- Power Rating: SAH5: 5W, SAH15: 15W
- Max Sound Level: SAH5: 119 dBspl, SAH15: 124 dBspl
- Input Sensitivity: 125 mVrms
- Input Impedance: 2k ohms
- Dispersion: 120°
- Dimensions: 10-5/8" W x 12" H x 11-1/2" D
- Weight: 6 lb.
