Bogen S86T725PG8UVR Public Address Equipment

Part Number: S86T725PG8UVR
Model: S86
Add to My Shopping List Add to Compare
$36.82

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Crossover Type
1-way
RMS Output Power
4 W
Minimum Frequency Response
50 Hz
Maximum Frequency Response
12 kHz

Product Description:

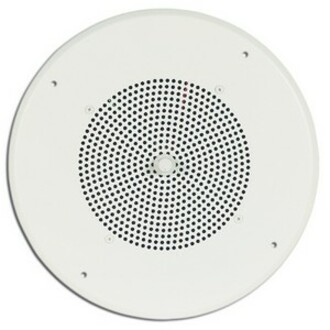

  Bogen S86T725PG8UVR Speaker - 4 W RMS - 1-way - 8 Ohm - Indoor/Outdoor
Explore all Bogen S86 Public Address Equipments
Add to Quote
Bogen S86T725PG8UVR Public Address Equipment
Bogen S86T725PG8UVR Public Address Equipment
Bogen S86T725PG8UVR Public Address Equipment Bogen S86T725PG8UVR Public Address Equipment
Full specifications (PDF)

Bogen S86 Public Address Equipment Model Overview

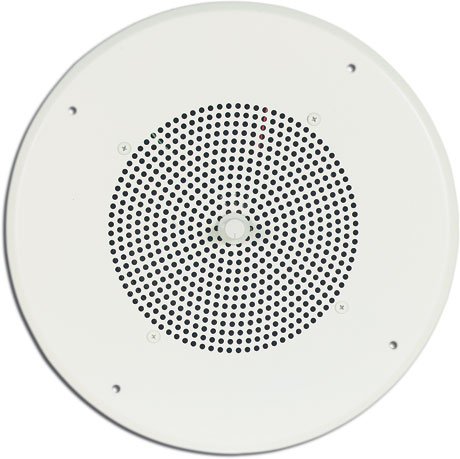

The Bogen S86 and S810 loudspeakers deliver exceptional sound clarity and robust performance, making them ideal for commercial settings. With an 8" cone-type design and various transformer options, these speakers easily adapt to both wall and ceiling installations. The magnetic structures of the S86 and S810 ensure maximum air gap energy while providing high sensitivity and an optimized frequency response. Enjoy the convenience of factory-assembled versions that simplify installation, allowing for swift integration into your audio systems, ensuring trouble-free operation and outstanding sound quality.

Key features:
  • High-quality sound: 8" cone design with exceptional sensitivity.
  • Power Options: Available in 7 watts (S86) and 15 watts (S810) power handling capacities.
  • Easy Installation: Quick attachment provision for transformers and factory-assembled options.
  • Versatile Accessories: Multiple optional configurations with volume control and terminal strip.


Specifications:
  • Speaker Model: S86, S810
  • Cone Diameter: 8"
  • Magnet Material: Ceramic
  • Voice Coil Impedance: 8 ohms
  • Frequency Response: 50Hz to 12kHz (S86), 70Hz to 15kHz (S810)
  • Axial Sensitivity: 95dB (S86), 96dB (S810)
  • Shipping Weight: 25 lbs (S86), 34 lbs (S810)
  • Depth: 3-1/4"
Full specifications (PDF)
Technical Information
Crossover Type:
1-way
RMS Output Power:
4 W
Minimum Frequency Response:
50 Hz
Maximum Frequency Response:
12 kHz
Impedance:
8 Ohm
Application/Usage:
Indoor/Outdoor
Shape:
Round
Physical Characteristics
Color Family:
White
Product Color:
White
Product Material:
Steel
Form Factor:
In-ceiling
Width:
14"
Depth:
3.25"
Diameter:
13"
Miscellaneous
Additional Information:
  • 6 power taps available (4W, 2W, 1W, 1/2W, 1/4W, 1/8W)
  • Pre-assembled for faster installation
  • Sensitivity (4 ft./1W): 95dBspl
  • Recessed volume control

    • Driver Size: 8"

    Driver Material: Cone

    Item Numbers
    GTIN: 0765368481105
    UPC: 765368481105
    EAN: 0765368481105
    UNSPSC: 43211607
