Full specifications (PDF)
Impedance:
8 Ohm
Features:
Faster Installation

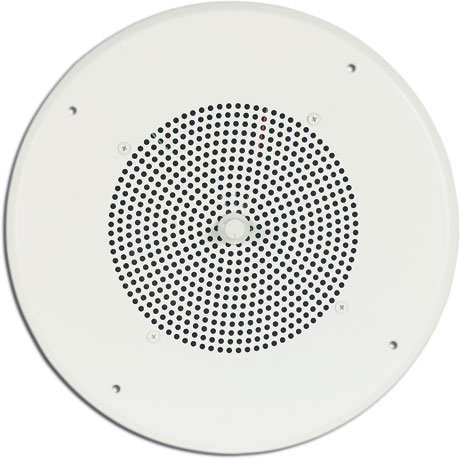

Bogen S86T725 Public Address Equipment
Part Number:
S86T725
Model:
S86
Bogen S86 Public Address Equipment Model Overview
The Bogen S86 and S810 loudspeakers deliver exceptional sound clarity and robust performance, making them ideal for commercial settings. With an 8" cone-type design and various transformer options, these speakers easily adapt to both wall and ceiling installations. The magnetic structures of the S86 and S810 ensure maximum air gap energy while providing high sensitivity and an optimized frequency response. Enjoy the convenience of factory-assembled versions that simplify installation, allowing for swift integration into your audio systems, ensuring trouble-free operation and outstanding sound quality.
Key features:
Specifications:
Key features:
- High-quality sound: 8" cone design with exceptional sensitivity.
- Power Options: Available in 7 watts (S86) and 15 watts (S810) power handling capacities.
- Easy Installation: Quick attachment provision for transformers and factory-assembled options.
- Versatile Accessories: Multiple optional configurations with volume control and terminal strip.
Specifications:
- Speaker Model: S86, S810
- Cone Diameter: 8"
- Magnet Material: Ceramic
- Voice Coil Impedance: 8 ohms
- Frequency Response: 50Hz to 12kHz (S86), 70Hz to 15kHz (S810)
- Axial Sensitivity: 95dB (S86), 96dB (S810)
- Shipping Weight: 25 lbs (S86), 34 lbs (S810)
- Depth: 3-1/4"
Bogen S86T725 Public Address Equipment Overview

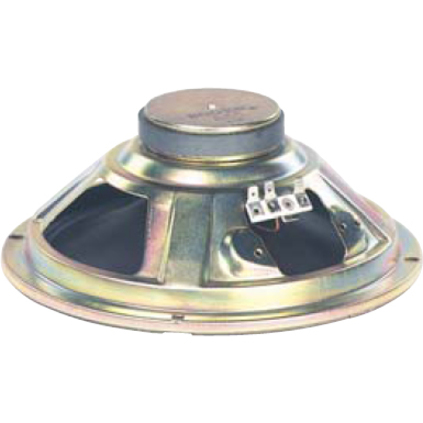

S86 Cone Loudspeaker The loudspeaker shall be a Bogen model S86 (or transformer-coupled S86T725 or S86T725BR), or equivalent, 8" cone-type loudspeaker, having a frequency response of at least 50 Hz to 12 kHz. Axial sensitivity shall be 95 dB, measured at 1-watt/4 feet. The loudspeaker shall have a 6 oz. ceramic magnet, a 3/4" inch voice coil, and a power handling capacity of 7W, minimum. Mounting holes shall be provided for attaching an optional transformer. Speaker depth shall be 3-1/4".
Technical Information
Physical Characteristics
Form Factor:
Ceiling Mountable
Depth:
3.25"
Miscellaneous
Additional Information:
- 7 watts and 15 watts power handling capacity
- 8" cone speaker for excellent audio quality
- Available with screw terminal strip (BR models)
- Easy to install in wall baffles or ceiling grilles
Item Numbers
GTIN:
0765368480771
UPC:
765368480771
EAN:
0765368480771
UNSPSC:
52161512
