Bogen MB8TSQVR Public Address Equipment

Part Number: MB8TSQVR
Model: MB8 Series
Add to My Shopping List Add to Compare
$76.42
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
PMPO Output Power
4 W
Minimum Frequency Response
110 Hz
Maximum Frequency Response
15 kHz
Product Color
Off White

Product Description:

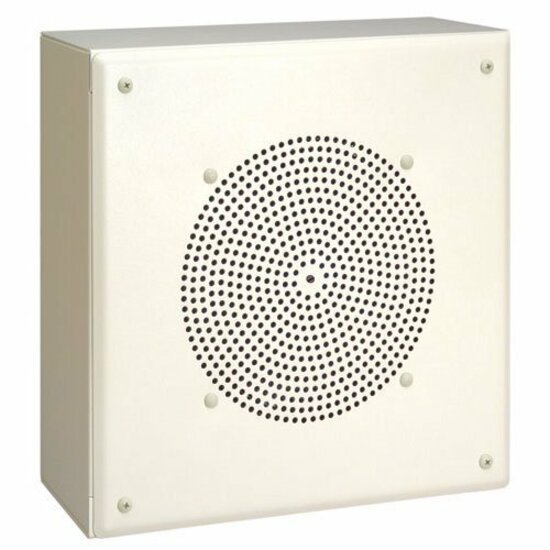

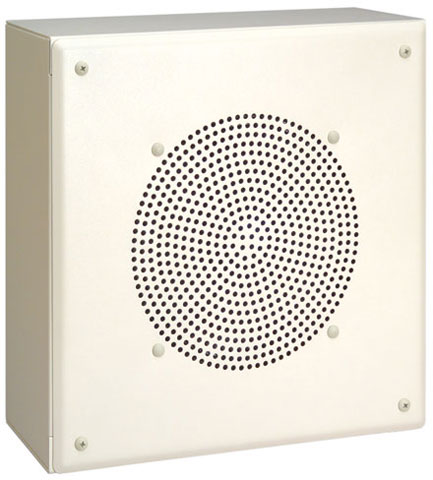

  MB8TSQ Metal Box Speaker (8 Inch Cone, 4W Trans with VR)
Explore all Bogen MB8 Series Public Address Equipments
Add to Quote
Bogen MB8TSQVR Public Address Equipment
Bogen MB8TSQVR Public Address Equipment
Bogen MB8TSQVR Public Address Equipment Bogen MB8TSQVR Public Address Equipment
Full specifications (PDF)

Bogen MB8 Series Public Address Equipment Model Overview

Bogen's MB8TSQ and MB8TSL speakers offer a robust solution for commercial audio needs. Engineered with a full steel surface-mounted enclosure, these speakers feature an 8" cone loudspeaker that delivers exceptional sound quality and intelligibility. The MB8TSQ can be mounted on either the ceiling or wall, while the MB8TSL is specifically designed for wall mounting with a 12.5-degree downward angle. With a versatile 4-watt maximum output and multiple transformer tap settings, these speakers are compatible with both 70V and 25V audio systems, providing flexibility for various installation requirements.

Key Features
  • Rugged all-steel surface-mounted enclosure
  • Multi-tap transformer options: 4, 2, 1, 1/2, 1/4, 1/8 Watts
  • Excellent sound intelligibility with a full range 8" cone speaker
  • Includes mounting hardware: toggle bolts, wood screws, and wire crimps
  • Compatible with 25V or 70V amplifier systems


Specifications
  • Cone Diameter: 8" (paper)
  • Magnet Weight: 6 oz.
  • Power Rating (max.): 4 Watts
  • Transformer Power Taps: 4, 1/8 Watts
  • Constant Voltage Amp Type: 70V or 25V
  • Frequency Response: 110 Hz - 15 kHz
  • Sensitivity (1-watt @ 1 meter): 96 dBspl
  • Dispersion Angle: 100°
  • Product Weight: 9 lb.
  • Enclosure Size MB8TSQ: 11-5/8" W X 11-5/8" H X 4-1/4" D
  • Enclosure Size MB8TSL:
    • Top: 11-5/8" W X 11-3/8" H X 5-3/8" D
    • Bottom: 11-5/8" W X 11-3/8" H X 3-1/8" D
Bogen MB8TSQVR Public Address Equipment Overview

Bogen's MB8TSQVR Metal Box Speaker feature an all-steel surface-mounted enclosure with an 8" cone loudspeaker and multi-tap 4-watt 70V/25V transformer. The MB8TSQVR Metal Box Speaker is suitable for ceiling or wall mounting. Features a recessed volume control at the center of the grille.

Full specifications (PDF)
Technical Information
PMPO Output Power:
4 W
Minimum Frequency Response:
110 Hz
Maximum Frequency Response:
15 kHz
Physical Characteristics
Product Color:
Off White
Product Material:
Steel
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
11.6"
Width:
11.6"
Depth:
4.25"
Weight (Approximate):
9 lb
Miscellaneous
Package Contents:
  • MB8TSQVR Metal Box Speaker
  • Mounting Hardware
Additional Information:
  • Transformer Power Taps: 4, 2, 1, 0.5, 0.25, 0.125 Watts
  • Sensitivity: 96 dB
  • Recessed Volume Control
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0765368370461
UPC: 765368370461
EAN: 0765368370461
UNSPSC: 52161512
